Dinse Plug - 35-50 Cable Plug - Genuine Dinse

Dinse Plug - 35-50 Cable Plug - Genuine DINSE

ITEM CODE: IA0001BA

£13.10

(Incl VAT VAT£15.72)

DINSE plug for 35-50mm sq cable.

Order now for Tuesday delivery.

Order now for delivery 28th August.

Earn 13 points when you buy this item.

Notify me when this item is back in stock!

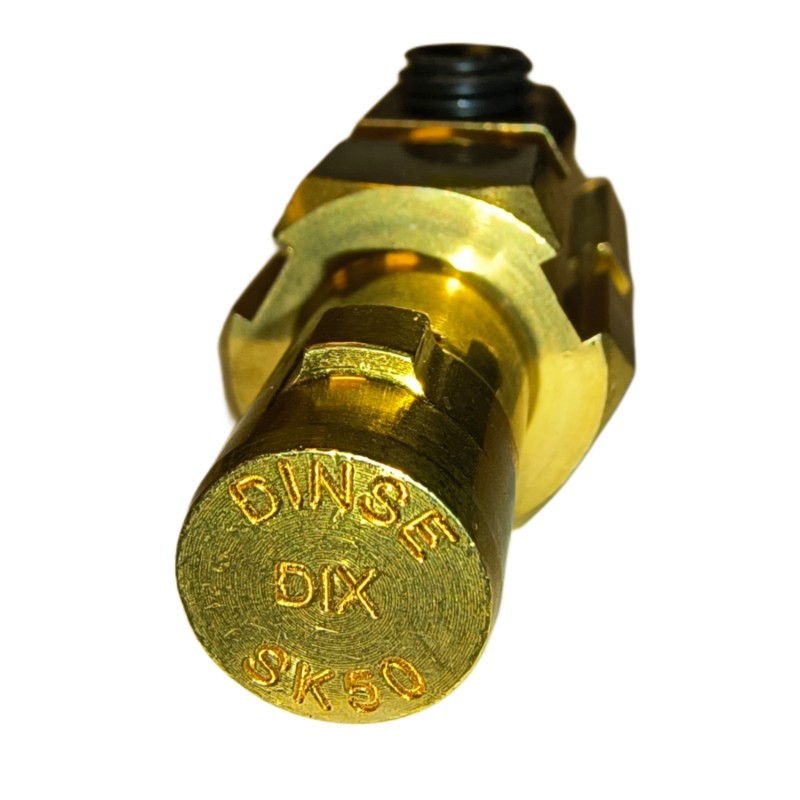

Dinse Plug - DINSE Original Large Diameter 12,8mm For cable size 35-50mm²

German made dinse type plugs.

Safe and quick connection, high flash-over resistance, easy mounting and compatible with all commercially available makes. EN 60 974-12

These genuine DINSE heavy duty Dinse plugs have the larger size 12.7mm Dia. pin for this size dinse plug the cable entry hole is 11.5mm dia in the copper sleeve.
This size plug is the first of the larger sized dinse plugs for 35-50mm sq cable.
Part no.
Pin dia - 12.8mm
Pin length to shoulder - 20mm
Brass lug length - 55mm
Square body - 20mm
Cable hole depth - 24mm
Copper sleeve length - 25mm
Copper sleeve bore - 11.5mm dia.

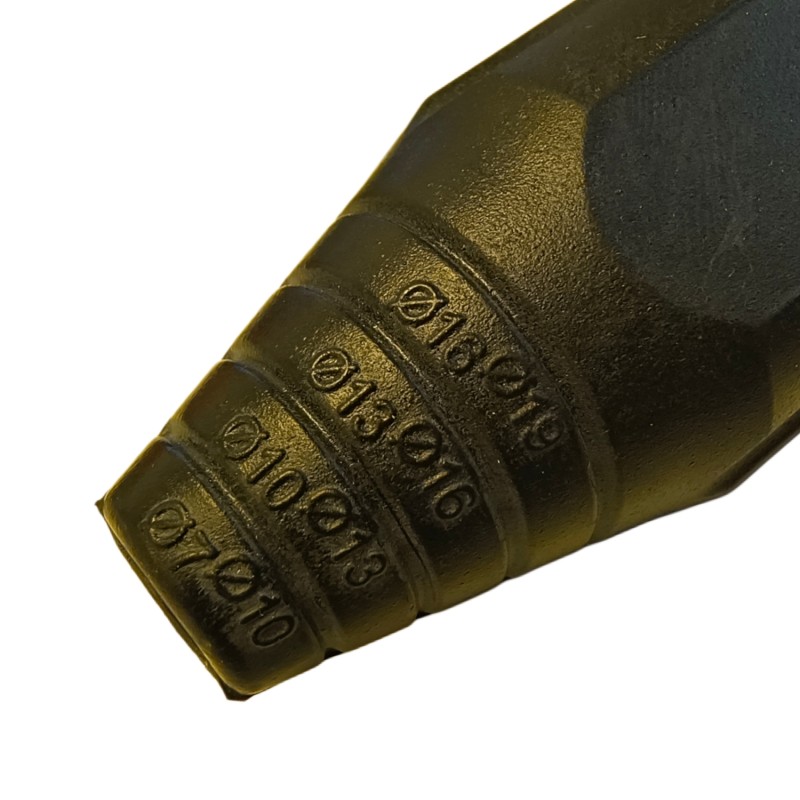

Insulating rubber cover length - 112mm
Insulating rubber width - 33 AF 36 Dia.
Assembled length - 132mm approx.

DINSE is a registered trademark of DINSE G.m.b.H
