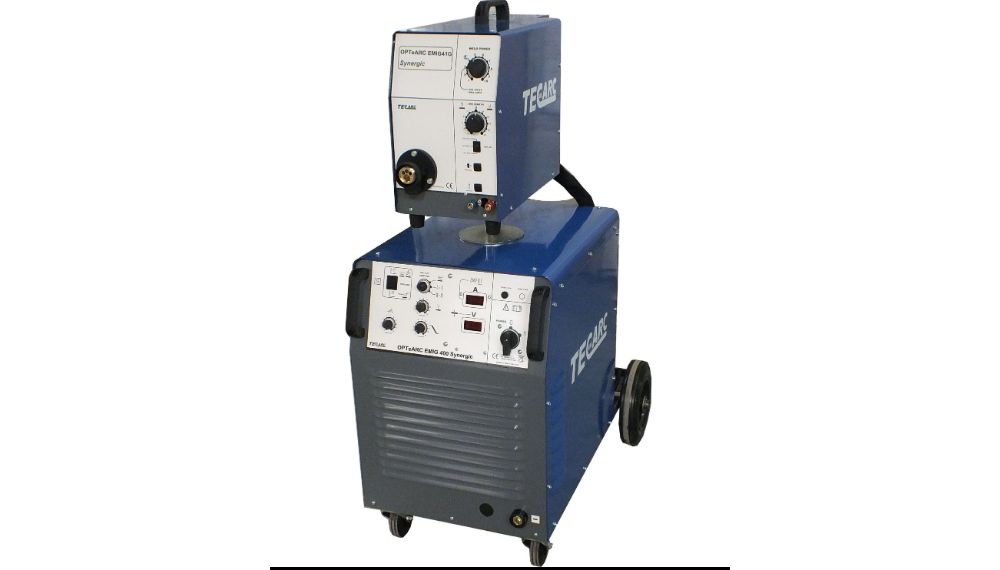

OPTeARC EMIG Pulsed Synergic 400 amp 240V Welder Water Cooled Separate Wire Feed - Tec Arc Made in the UK
Wide range of options available - Please telephone Noz-Alls for price and lead time.
Tel 01242 681052
A British made hybrid chopper technology based MIG welder which provides the superior performance demanded of industrial welders it is the ability of the Mitsubishi hybrid chopper technology to combine the advantages of inverter technology along with the rugged reliability of traditional transformer based MIG welders which makes these industrial MIG welders so appealing.
When you need to work and keep working the 60% duty cycle ensures you don’t have to stop, the duty cycle being measured at 40C which implies that in the UK you may expect your welder to perform really well. For those of you welding at high power for long periods this welder is fitted with water cooling.
It is of course possible to have the MIG welder without the water cooling.
The OPTeARC range comes as standard with a four roll wire feed for consistent wire feeding along with the normal 60% duty cycle.
Like an inverter based machine these hybrid chopper MIG welders ensure the lowest power consumption whilst also enjoying simple operation similar to transformer welders.
eMIG Range Choice
In the eMIG range you may choose from 20 - 300A, 20-400A, 20-500A & 20-650A
High power single phase MIG welders up to 500 Amps are available for those that don’t have access to 3 phase power supply which means that when heavy duty welding is required it is still possible and your work will not be restricted, due to your power supply – assuming you have sufficient current draw being available in your supply.
3 phase MIG welders area available up to 650 Amp output.
The TEC ARC OPTeARC eMIG welders are available from simple eMIG MST systems to the eMIG synergic then on to the eMIG synergic double pulsed MIG welders so you can ensure your joint needs and finish can be met and obtained efficiently and quckly.
The ethos behind these MIG machines is that they are "built to last" and will prove to be a great value for money. Large cooling fans offer good performance over prolonged periods and should the machine come to a point of overheating there is a dual overload protection system which ensures your machine is protected.
Noz-Alls With a choice of wire rollers available - we can supply rollers for 0.6mm right through to 1.6mm with these machines.
The OPTeARC EMIG Synergic Pulse 400A Separates - 230 volt will accept both 5 and 15 kg reels.
Importantly the wire feed unit has the ability to also control gas purge, burn back, inching and latching.
These OPTeARC machines include circuitry which monitors your welding arc 10 000 times per second making small adjustments to the arc to ensure the arc is delivered consistently and smoothly ensuring your welding power doesn't alter.
The following advantages make this welder really easy to use:-
A) Infinitely variable power control for MIG welding
B) wire speed control on wire feeder unit
C) Variable electronic inductance to modify the arc and reduce spatter
D) 2T & 4T trigger latching on MIG
E) Variable burn back control
F) Digital voltmeter & ammeter
G) Soft start & Arc start circuit
H) Wire inch and gas purge on Wire Feeder
I) At finish of the weld - wire pinch off to remove ball ready for next start
J) Pre-set weld thickness on digital meter
K) Synergic MIG one knob control on wire feeder
L) Crater fill slope down of welding power at end of weld
M) Synergic pulse MIG for all materials
N) Synergic double pulse MIG for all materials
O) MMA anti- stick function to release stuck rods
P) Lift arc TIG function for perfect DC TIG starts
Technical Spec
Input Voltage - 230
Phases - Single
Fuse Rating - 64A
Open Circuit Voltage - 18.8-48.6
Duty Cycle at 40 Degrees C - 400A @ 60%
Steps - 30
Wire Sizes - 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm
Power Source
Weight - 88kg
Dimensions - 900 x 450 x 730 (L x W x H)
Wire Feeder
Weight - 12kg
Dimensions - 535 x 295 x 330 (L x W x H)
