Esab Magnetic Position Holder - Small 90 & 45 Degrees
Support Weight: 45lbs (20 kg)
Direct Lift Capacity: 16.5lbs (7.5 kg)
A small multi flunctional magnet that is designed to help you produce good welds. Ideal when you need an extra set of hands for positional welding or simply just lifting up a small piece of dropped metal that is just out of reach.
When you need a "third hand" these magnetic position holders are so helpful allowing you to "tack-up" before you weld your joints.

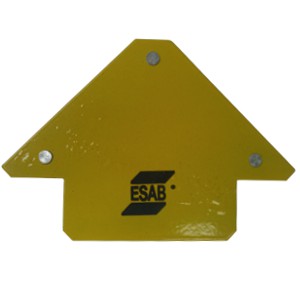

ESAB Small - Yellow
120mm tip to tip
No centre hole
90mm - two sides @ 90 degrees
15mm - apex flat
70mm - Hyp / 45 flat
25mm - step up and cut in
14.5mm - width
7.5 kg - magnetic pull
weight 296g

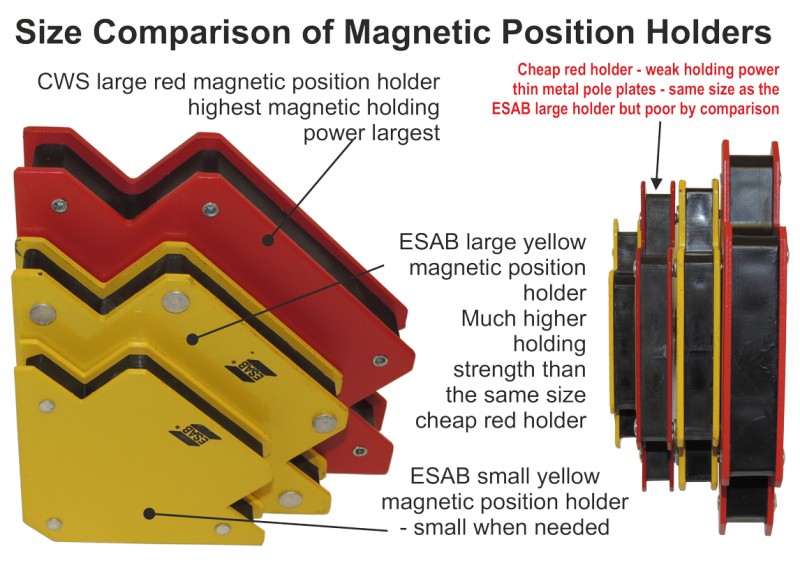

Large ESAB holder also available.
CWS extra large high pull position holder also aviailable
