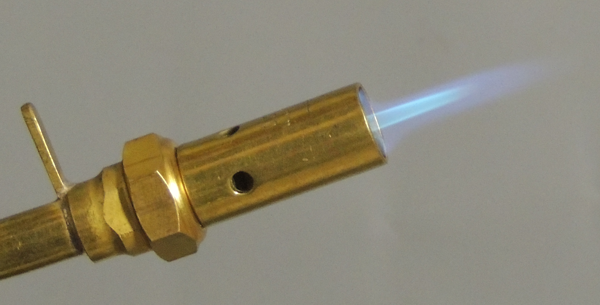

Air Propane Needle Point Flame Burner - Brass body - Size 1 = 20g/hr
Air / propane needle point burners provide a small concentrated flame cone for those smaller applications such as brazing joints, soldering joints, warming smaller articles, warming heat shrink sleeve to seal cable joints. The #1 needle point burner would be ideal for the soldering of micro-bore central heating copper pipe joints and of course many more applications.
As with all air / propane burners when set correctly the maximum flame temperature will be 1900 Celsius, the volume of heat available increases with nozzle size, the #1 nozzle is the smallest and only burns 20grams of gas per hour.
The other sizes in the range #2 & #3 are both needle point flame nozzles, the #4, #5, #6, #7 & #8 are all broad heat burners.
The needle point burners would normally be used with the 50mm long neck and one of the shanks.
These are good quality burners manufatured in Spain.
Bunrner outlet bore 15mm, length 46mm
Burner thread connection M20 x 1.00
Hexagon 22mm, Bunrner diameter 17mm OD
Maximum propane pressure 1.5 bar
