MIG MAG Welder Headux Compact MIG 250C Inverter Welding Machine
With this very capable 250 amp MIG welder Noz-Alls are able to ensure that we are able to provide you with the best value for money for a compact 240V industrial MIG welder
The Headux 250 amp compact MIG MAG welder has been competitively priced to provide you with the option of owning a truly industrial quality MIG welder with excellent build quality a host of useful features and great welding ability

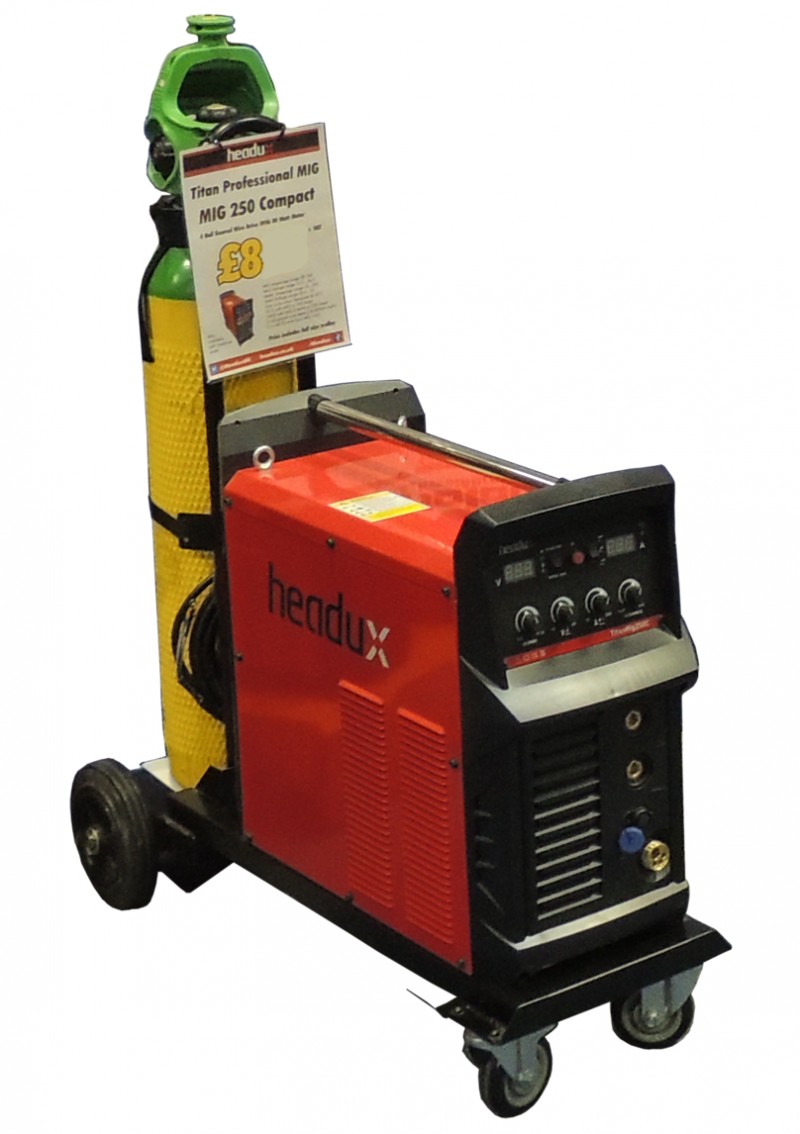

The listed price indicated above includes the very manoeuvrable industrial machine trolley which allows a full size industrial shielding gas cylinder to be used. Trolley has large rear wheels and two front lockable casters. Please see picture number 5 for the full size MIG trolley.
The Titan 250 compact MAG MIG welder has been designed to satisfy the most demanding and professional markets so that you may enjoy a sensitive and responsive MIG welder capable of welding thin automotive bodywork or thin sheet metal down to 30 amps yet it is powerful enough to blast welds in when you need it to all on a single phase supply.
Your Titan 250C is a really versatile welding machine, providing you with many welding options, of course MAG / MIG welding with mild steel fillers (ER70S-6 et cetera), stainless steel fillers (304, 308, 312, 316 et cetera), Aluminium (4043, 5356…..et cetera) plus you can MIG braze with CuSi brazing wires. To aid MIG welding with softer filler wires the Titan 250 Compact has a “spool on gun” interface allowing you to attach the spool on gun MIG torch which makes welding so much easier with softer filler wires.
Besides MIG welding your Titan 250C is a very accomplished MMA or stick welding machine with a power range from 10 to 250 Amps. The innovative IGBT inverter technology ensure great arc ignition and stability whatever the power setting.
As with most Inverter welders you have the ability to undertake lift TIG with your Titan 250C.
This type of MIG welding machine is the backbone of industry, the 250 Amp single phase compact MIG welder manufactured as a complete unit in a single case and generally being used with a trolley.
Key factors for this machine type are reliability coupled with versatility as these machines are used across a wide range of industries. The Titan compact 250C MIG is able to undertake a broad range of welding tasks.
The Titan MIG 250C is simple and easy to use whilst having features that ensure consistent performance, whatever you weld. The wire feed drive roll system has 4 geared wire drive rolls for smooth and consistent wire feeding, all being driven by a high output 80 watt motor. Innovative IGBT inverter technology ensures excellent arc stability in all welding modes whether it’s MMA - TIG or MIG (with minimal spatter). The high duty cycle enables you to continue to weld, to get your job completed.
Welding with softer wires such as aluminium and CuSi couldn’t be easier having the spool on gun interface ensures you may couple up the spool on gun MIG torch for ease of welding.
The wire drive system does have the option of “U” groove wire drive rolls so you are able to feed aluminium wire conventionally as well.
Headux Titan MIG 250C Main Features
MIG Amperage range 30-250
MIG Voltage range 15.5 - 26.5
MMA Amperage range 10 - 250
MMA Voltage range 20.4 - 33
Duty cycle when measured @ 40C
35 % with MIG at 250 Amps
100% with MIG & MMA at 150 Amps
Wire drive system 4 roll geared wire feeding & 80Watt motor
Standard MIG torch 3 m MB 25 style Euro MIG torch
4 m - 7m available as an extra cost option
Other features:-
Front panel spool on gun connection
2 -30L/min proper flow metre regulator
Simple change from gas to flux cored wire
Accepts full size 15kg & 5kg wire spools
3.0 m fitted gas hose - Longer on request
6.0 m primary power cable
3 trolley options are available.
32 amp blue plug (not fitted)
Instruction manual
Quick start guide - written by Noz-Alls.
2 year warranty as standard.
230 volt 50Hz input - 10.8 kVA required
Size L x W x H = 685 x 295 x 560mm
Weight 35kg
Price shown includes full size MIG trolley suitable for use with single large gas cylinder.
Machine skate is lower in cost - see picture 6
Also available without the trolley if you have your own or will be working from a fixed point
Headux MIG 250 Compact – Including trolley
MIG Welding Current Range - 30 – 250 A
Duty cycle at full power 35% measured at 40C
Power steps – Infinite - 220 steps based on 1 amp variation
Anti-spatter circuitry Yes
Power Setting System Simple two control, Wire Feed Speed & Welding Voltage
LED display – Twin LED read outs
MIG Wire feed rate – 1.5 to 18 m / min
Soft Start
Wire Drive System 4 roll geared metal drive rolls
Wire Drive motor 80 watt motor
Gas & Gasless Yes - Simple flying lead swap over in wire cavity
Wire Drive Rolls Supplied Vee rollers 0.8mm & 1.0mm plus 1.0mm & 1.2mm
Burn back control Yes
Inductance adjustment Yes
Wire “inch” button Yes
Trigger option 2T
MIG torch - Standard Euro connection
MIG Torch type - CWS 3m MB25
Work Return Lead – 3m with large Dinse & crocodile clamp
MMA Stick Welding Yes Optional electrode holder – Twist or crocodile
MMA Welding Current Range 10 – 250 A
Lift TIG Welding Yes Optional – plug into MIG torch socket
Lift TIG Welding Current Range 10 – 250 A
Power amplification - IGBT inverter - Yes
Spool Size – Mild steel 15kg 300mm Dia. & 5kg 200mm Dia.
Spool-on-gun MIG torch socket – Yes 3m or 8m long accepts 1kg spool 0.5kg Aluminium
PFC Power Factor Correction No
Power Supply Required – 230 Volt single phase
Suitable for use with generator Yes Accepts + - 15% power fluctuation
Best plug to fit – Blue 32Amp to achieve full welding output
Shielding Gas Supply Hose Yes 2m fitted with quick connect & G3/8 nut
Flow regulator with flow tube Yes 2 – 30 L/min (may be substituted with 2 gauge at times).
Size L x W x H 685 x 295 x 560mm – not including trolley
Weight 35kg
.
