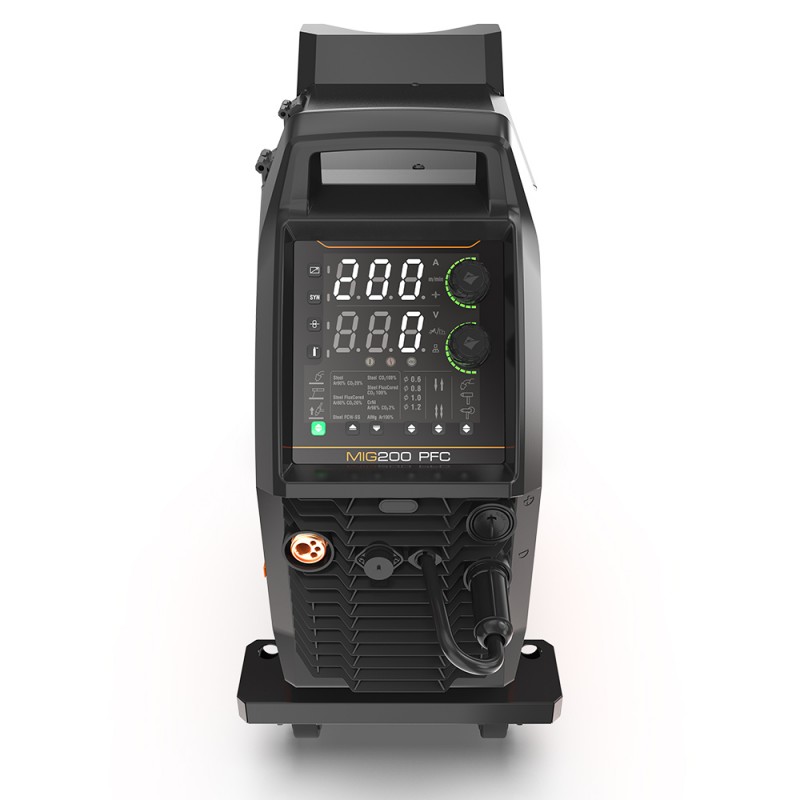

Jasic Evo 2.0 - EM-200CT MIG Welding Machine - MIG 200 PFC
Standard Screen Version
If you are reading this then you will probably already be aware that the Jasic Evo 2.0 range is not just any old standard MIG welder. This machine comes packed full of tech to make your working life simple. Not only does it come with a 4m MIG torch and 3m work return lead set it is also a machine that comes as standard with PFC. This means that it is perfect for site work on longer extension cables or indeed if you have to work with it on 110V, you can. Combine this with a 5 year warranty straight out of the box and the rather handy feature of being both wired or wireless foot pedal ready for TIG amperage adjustment it really stands out above the others in the market.
The design of the machine has been very well thought out and this ergonomic design lends itself beautifully to the ClearVision technology provided in front screen panel. Where normally a standard MIG welder is just control of the wire feed and voltage the EM-200CT gives you an intelligent synergic control to make welding even easier, just dial in the material type, the wire diameter and plate thickness. For an added bonus come and try this welder at Noz-Alls, you can experience the simple setup for yourself. You will also get to see the on-demand fan and auto sleep mode features which give you the ultimate of power saving. If you were to use this machine on the lift TIG function it can offer you something called Smart Lift TIG which reduces the contamination at the start of the welding process as well as identifying when you make an accidental short circuit by touching the work piece while welding. Arc wonder is also reduced by this clever bit of tech. While in TIG mode you can use the foot control to adjust your amperage just like you would on a full featured DC TIG welder.
Oh, we nearly forgot! There is a bright LED light inside the wire spool compartment so you can see what you are loading even in a dimly lit area. Not to mention any spare rollers have a nifty little storage area too! If in the future you decide that you would like to upgrade to the TFT display you can too.
Technical Data
| Input voltage |
95-265V, 50/60 Hz |
| Voltage @ |
AC 115V |
AC 230V |
| No load voltage |
68V |
| MIG rated input current |
38.1A |
32.8A |
| MIG Ieff Noz-Alls |
17.4A |
13.5A |
| MIG rated input power |
4.4kVA |
7.5kVA |
| MIG current range |
30-140A |
30-200A |
| MIG wire feed speed |
2-12m/min |
2-16m/min |
| MIG spool size |
15kg - 300mm Dia. |
| MIG duty cycle at 40 degrees C |
30% |
| MMA rated input current |
28.3A |
24.8A |
| MMA Ieff |
15.5A |
13.6A |
| MMA rated input power |
3.2kVA |
5.7kVA |
| MMA current range |
20-110A |
20-180A |
| MMA duty cycle at 40 degrees C |
30% |
| TIG rated input current |
24.2A |
19.43A |
| TIG Ieff |
13.3A |
10.6A |
| TIG rated input power |
2.8kVA |
4.4kVA |
| TIG current range |
5-140A |
5-200A |
| TIG duty cycle at 40 degrees C |
30% |
| Efficiency weldingdirect.co.uk |
>80% |
| Power factor |
0.99 |
| Idle state power |
<50W |
| Protection class |
IP23S |
| Insulation class |
H WeldingDirect.co.uk |
| Dimensions - LxWxH |
920 x 480 x 755mm |
| Weight |
41.9kg |
Recommended generator size
*Generator must have AVR |
6.5kVA @ 115V
11.5kVA @ 230V |
