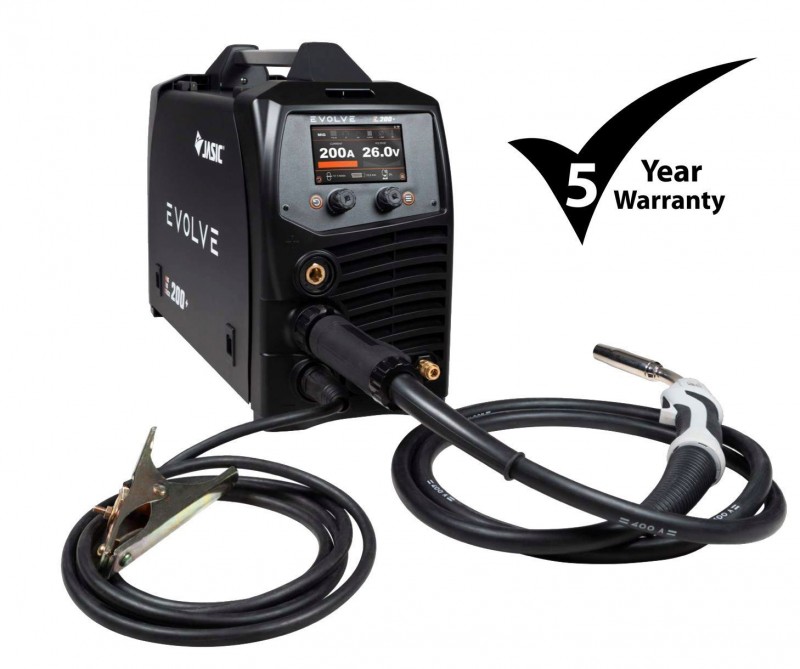

Jasic Evolve - 200A Double Pulse MIG Welder with HF DC TIG
Does your welder have an app to control and monitor the machine? Jasic are leading the way. Don't worry - you can still set the machine in the traditional way with a user friendly interface on the machine.
In short, this machine is like many others but it goes without saying that is has a few tricks up it's sleeves.
Single and double pulse synergic MIG
High frequency or lift DC pulse TIG
MMA functionality
4 roll wire feeder
User friendly graphical user interface
Wi-Fi enabled firmware updates
App control
Digital control MIG torch option
Over 100 synergic programs
100 job memory storage
2T/4T/Spot trigger control
IP23S
On demand cooling
Generator friendly *must have AVR
Jasic Evolve Technical Spec
Processes - MMA, MIG/MAG, Pulse MIG, Double Pulse MIG, Lift TIG, HF TIG
Power supply - 1ph~ AC230 V, 50/60 Hz
Rated input power - 5.83 kVA
Power factor - 0.65
Rated efficiency - 82%
Rated no-load voltage - 77 V
Rated maximum output
MMA 180 A/27.2 V
MIG/MAG 200 A/24 V
TIG 200 A/18 V
Rated duty cycle - 25% @40℃
Welding output range
MMA 20-180 A
MIG/MAG 20-200 A
TIG 5-200 A
Protection class IP23S
Insulation class H
Welding wire material programs
SG2
SST (CrNi)
AlMg5
AlSi4
Cusi3
Cooling method - Air cooling, on demand fan
Dimensions - 605 x 400 x 230 mm
Weight - 17.0 kg
You may well find a couple of functions that think 'what does that do?'
The first is Glick, a Graded cLICK of the button on the torch being used gives you the ability to shift the amperage to a secondary setting as you weld. For example, one short press and you could reduce your amperage as the heat builds up in the workpiece. Another short press and you can increase the amperage back up to the first setting. A longer press and it will slope down and finish.

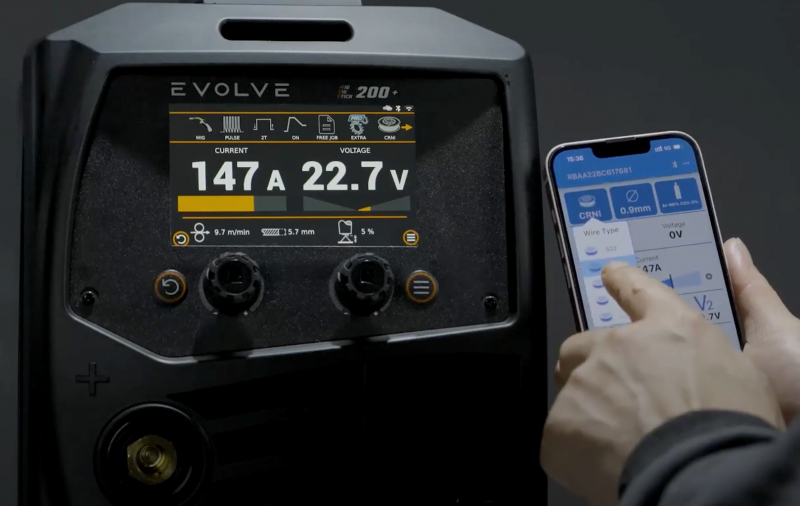

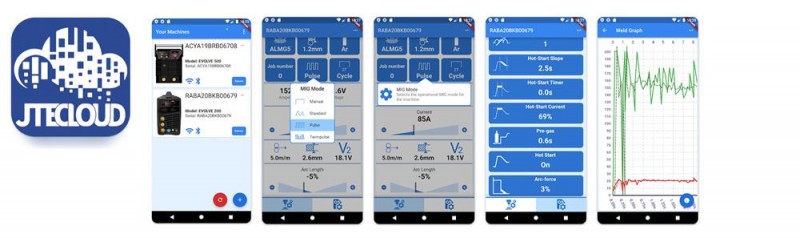

The JTE Cloud is an app that has been developed for the Jasic machine to monitor weld time and also set your machine parameters. This allows for cost calulations and also overall machine monitoring which is something not previously offered by Jasic on machines this size. Both the app and the machine display are easy to use and simply laid out to make sense even to a non-welder.
The software is updatable via WiFi so you will always remain up to date if there is a new software release. This machine will never go out of date unlike others.
