Genuine American Multi-Use Tips LGHSD7 High Speed Machine Cutting

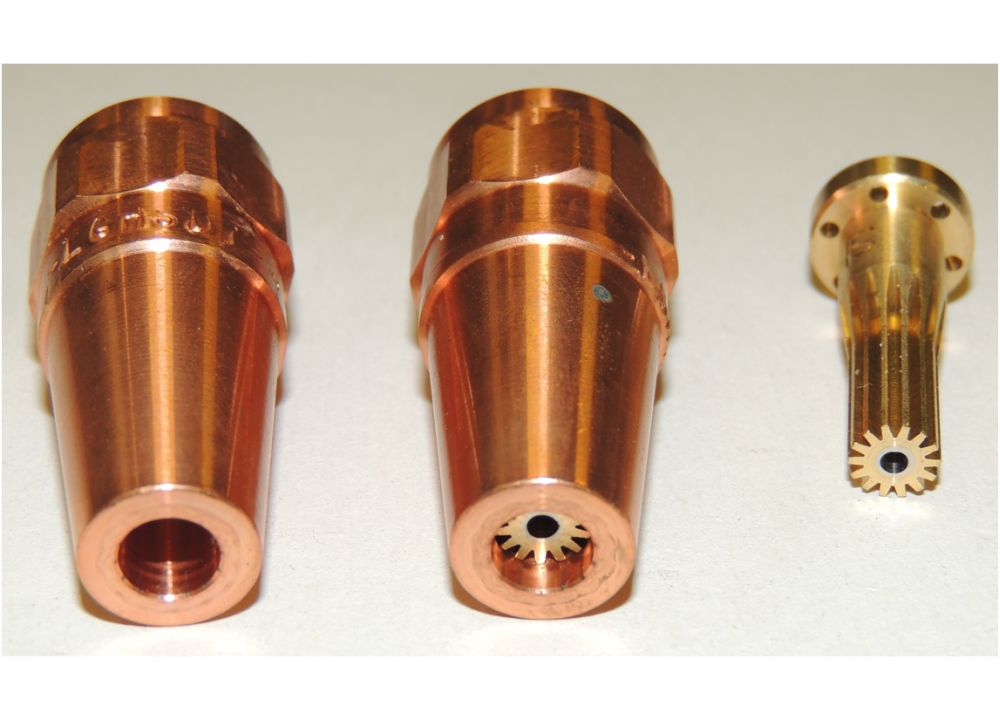

These LGHS-D7 tips are the "front end" of the multi-use style nozzles for use with the seat adaptor which suits your machine cutting torch. Many styles of seat adaptor are available to suit all common torch seat profiles.
The LGHS-D7 nozzle is very similar to the Koike style 106D7 in that it has the stainless steel insert in the cutting orifice which helps to aid longer operating life of the high speed convergent / divergent cutting bore being less prone to damage and spatter adhesion.
A full range of sizes are available in the "D7" format where D7 = 7 bar cutting pressure at the torch inlets to achieve the high speed performance these nozzles have been designed to achieve.
LGHS-D7 are available in sizes #00 through to #8
Nozzle
Size
|
Cutting
Thickness
(mm)
|
Propane
Pressure
(bar)
|
Oxygen
Pressure
(bar)
|
00 |
5 |
0.2-0.5 |
7.0 |
0 |
5-10 |
0.2-0.5 |
7.0 |
1 |
10-15 |
0.2-0.5 |
7.0 |
2 |
15-30 |
0.2-0.5 |
7.0 |
3 |
30-40 |
0.2-0.5 |
7.0 |
4 |
40-50 |
0.2-0.5 |
7.0 |
5 |
50-100 |
0.2-0.5 |
7.0 |
6 |
100-150 |
0.2-0.5 |
7.0 |
7 |
150-250 |
0.2-0.5 |
7.0 |
8 |
250-300 |
0.2-0.5 |
7.0 |
|
|
|
|
