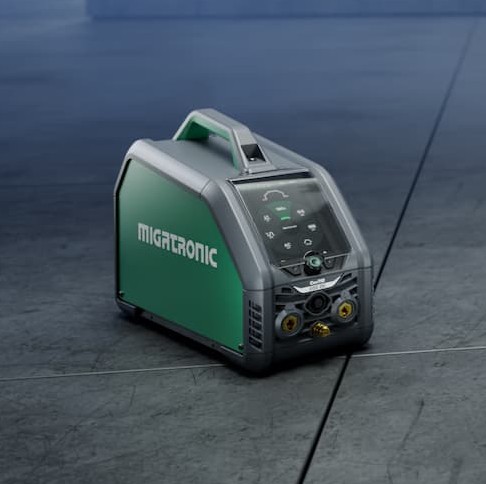

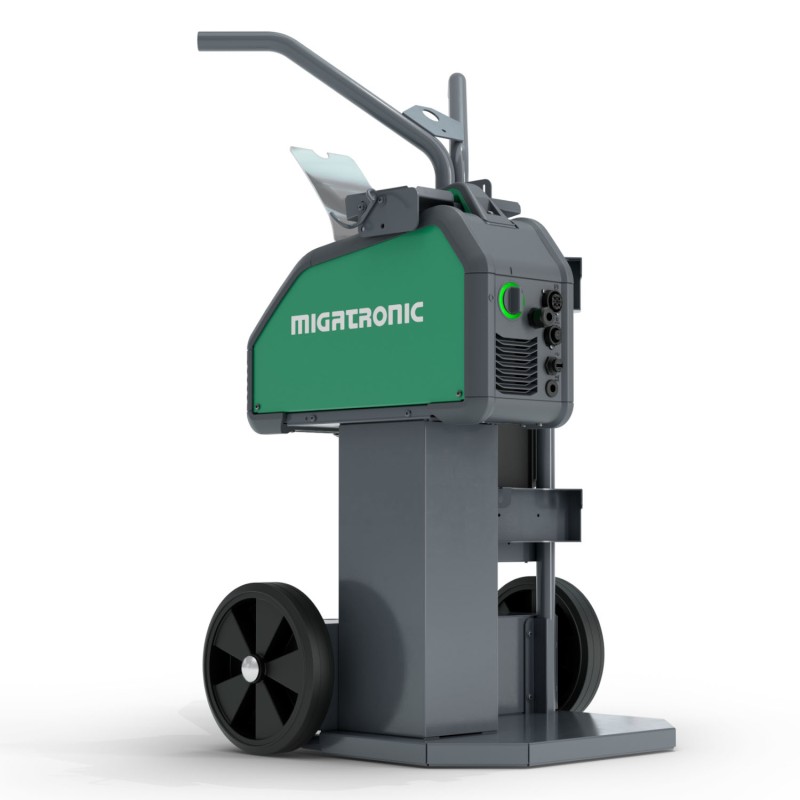

Migatronic CenTIG 200 ACDC Air Cooled

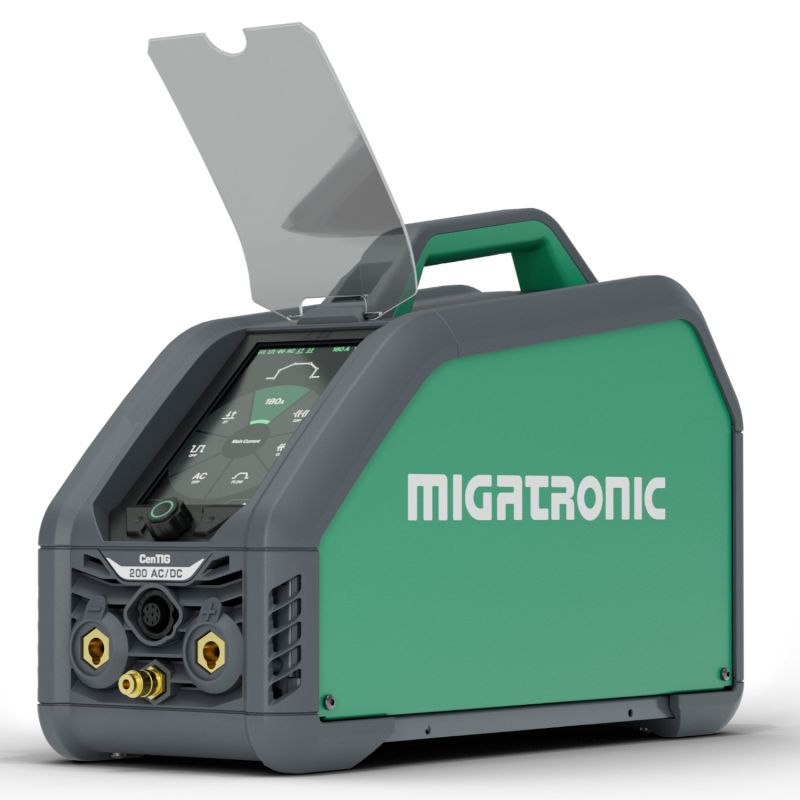

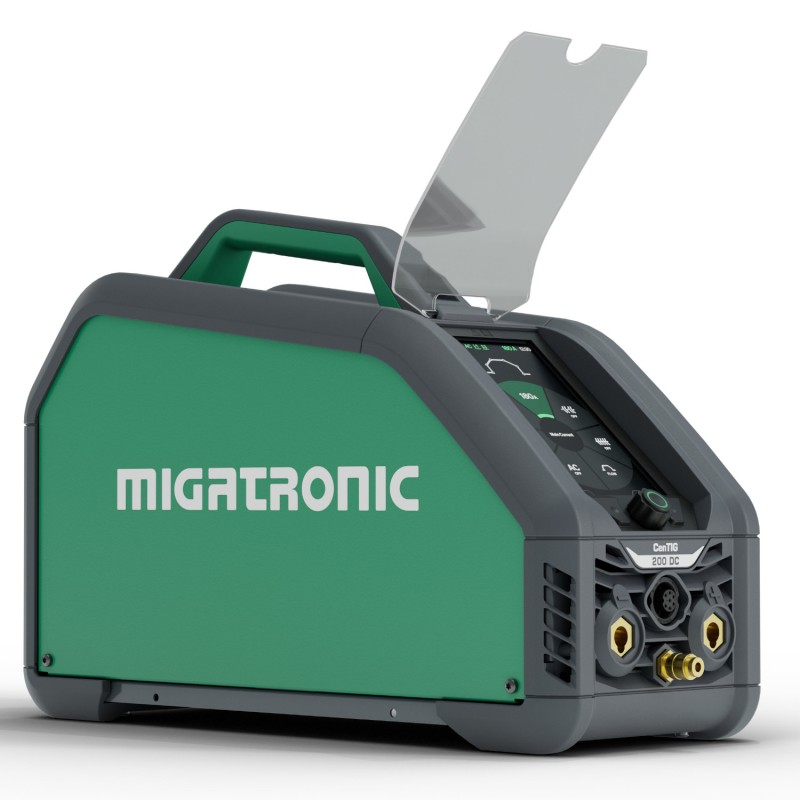

Possibly the best TIG welder to come to market. At a time when you think you will never better the Migatronic PI (which is still a brilliant machine), Migatronic have gone one better. The CenTIG is a game changing new TIG welder which will leave you putting others out to pasture. With a 100% duty cycle at 200 amps you have no risk of overheating and the resulting downtime, the setup screen has been made simple and with just one large control knob it is incredibly easy to use even with a gloved hand. The screen protector gives you the extra reassurance that the display isn't going to get knocked.

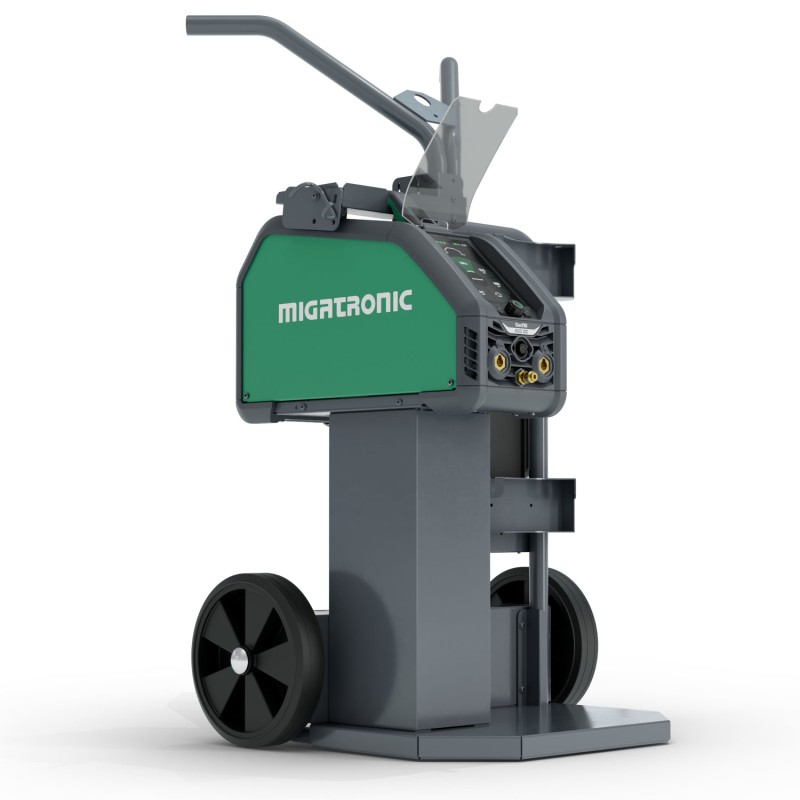

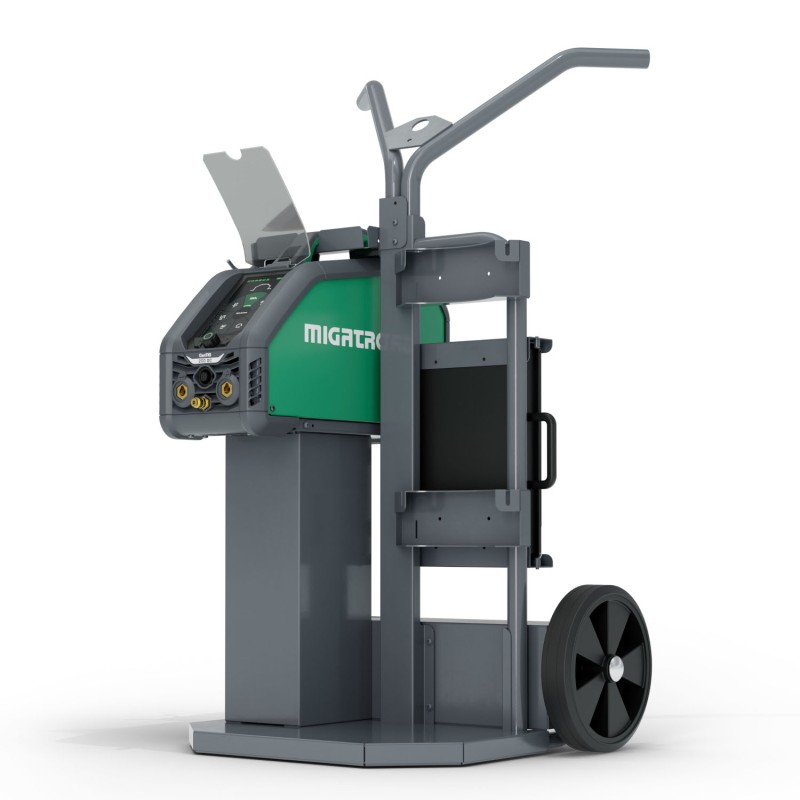

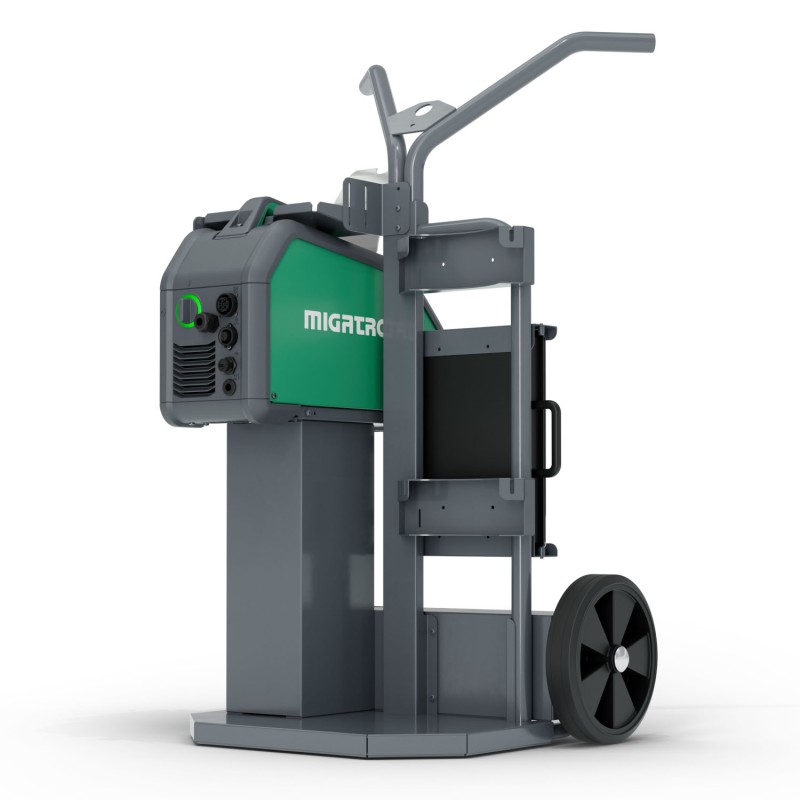

If you start out with an air cooled unit you can simply retrofit the water cooler (trolley optional) and then just select water cooling from the menu. Hey presto you are set to us the machine as a water cooled version. Where many manufacturers play on advertising just a few different wave form options Migatronic have really gone to town with this machine, if you have a particular requirement such as square top, triangle bottom, CenTIG can do it.
Ultimately, if you are TIG welding all day then this machine is for you. It will work tirelessly, it is easy to operate and the smoothness of the arc is impeccable. Sure there are cheaper welders out there but they will not be anywhere near as good as this machine and in the long run, either yourself or your artisans will thank you for it.
The below information is what Migatronic have to say about their welder. It's a bit long winded but you have got this far so you must still be interested! If you are local to Cheltenham, save yourself reading and just contact us for a demo and our local Migatronic rep can attend to show you just what this machine can do and all without having to read on.
CenTIG is a new range of single-phase TIG welding machines that delivers unmatched performance at 200 amps. Designed for busy professional TIG welders, CenTIG combines power and mobility in an exceptionally lightweight package. With robust and reliable operation, CenTIG maintains a 100% duty cycle even under continuous maximum load, eliminating downtime due to overheating.
CenTIG offers exceptional portability, perfect for on-site operations. Its lightweight and compact design ensures easy transportation. CenTIG out-classes everything else on the market, with the lightest AC/DC power source, weighing in at only 13.6 kg. The DC model is also one of the lightest in its class - only 13 kg. Versatile and reliable, CenTIG caters to a wide range of industry needs and applications. Whether for repairs and maintenance or bigger production tasks, CenTIG matches the need through its various configurations, including a DC and an AC/DC model, both with pulse function and available as air or water-cooled version. Furthermore, CenTIG is equipped with all the essential TIG functions you require in a professional setting.
1.Performance
The best performing single-phase TIG welding machine at 200 amps.
CenTIG is robust and reliable enough to operate continuously at its maximum load of 100 % duty cycle without the need for downtime to prevent overheating or wear.
2.Portability
The ultimate portability for TIG welding operations on-site.
CenTIG is lightweight and compact, making it perfect to bring along. This range delivers the lightest TIG AC/DC on the market - only 13.6 kg. The DC model is one of the lightest in its class - only 13 kg.
3.Versatility
The most versatile single-phase TIG welding machine for manufacturing.
CenTIG can be used for a broad range of applications – from repair to everyday production. Configurations include DC and AC/DC models with pulse, air or water cooled and with all necessary functions.
Applications:
1. CenTIG 200 Air cooled: Repair / Maintenance
CenTIG is designed to be exceptionally lightweight, weighing just 13 kg, ensuring that welders won't strain their backs while carrying it. Its compact size makes it convenient for welders to have it within reach even in the most unconventional work environments. With the addition of an ergonomic carrying strap, transporting CenTIG requires little effort, enhancing welders' mobility like never before.
2. CenTIG 200 Water cooled: Production / Assembly
With CenTIG, welders have access to unlimited power, thanks to its 100% duty cycle at 200 amps. This capability allows for continuous welding without any downtime, even when working on plates up to 10 mm in thickness. Additionally, CenTIG's compact design remains efficient even with water cooling, enabling welders to have it conveniently positioned wherever they need it in the workshop. The compact design takes up very little space while delivering optimal performance.

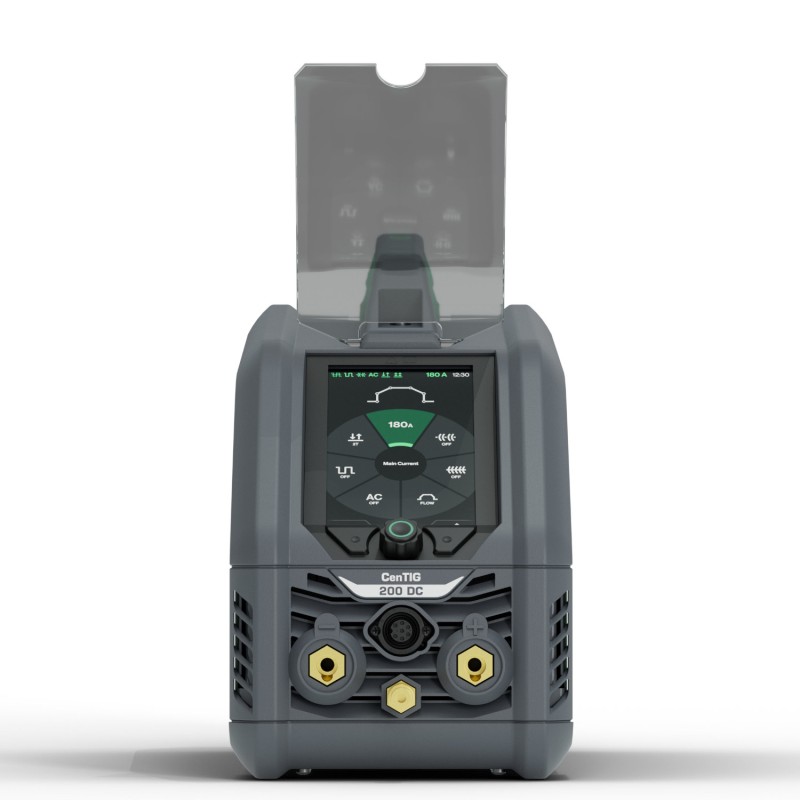

New digital display
CenTIG is completely redefining the Migatronic TIG welding experience with the introduction of a new digital display and interface. The impressive crystal-clear LED display lights up the settings and keeps the essentials near and handy. It is designed for easy navigation and clear adjustment of settings using the click wheel. It’ll make even the analog-lovers think again.
Software Functions
When purchasing CenTIG, you gain access to essential software functions that enhance your welding experience.
TIG-A-TACK
A semi-automatic process that makes extremely small and precise fixations that are invisible in the finished weld.
TIG-REP-TACK
A semi-automatic process that makes a series of small fixation points forming a coherent weld seam in ultra-thin materials, from 0,5 mm - 1,5 mm.
IGC
Automatic gas adjustments that reduce the risk of failures. It improves the weld quality and reduces the gas bill at the same time.
Pulse
Pulse gives better control of the weld pool, and the low heat input minimises the risk of damaging the steel.
Job
The user can save favourite and routine settings and easily recall them anytime.
Flow Control
The Flow Control is designed to observe the flow in the water tank to ensure everything is in perfect order. If the flow control detects any instability, the user will receive a warning. This also applies if the water tank is close to empty, reminding the user to refill the tank and avoid damaging the torch.
Technical Specifications
CenTIG 200 DC HP / AC/DC
TIG / MMA
Current range (TIG) 5-200 A / 10-140 A
Mains voltage +/-15% 1x230 V
Open Circuit Power Max. 30 W
Frequency (AC) 25–300 Hz
Duty cycle 40%/40° 200 A
Duty cycle 60%/40° 200 A
Duty cycle 100%/40° 200 A
Electrode dimension 1.0-3.2 mm
Display size 7"
Main plug Schuko
Plug front 1 x plug (+)
1 x plug (-) 1 x torch plug, 7 pole
1 x quick coupling for shielding gas

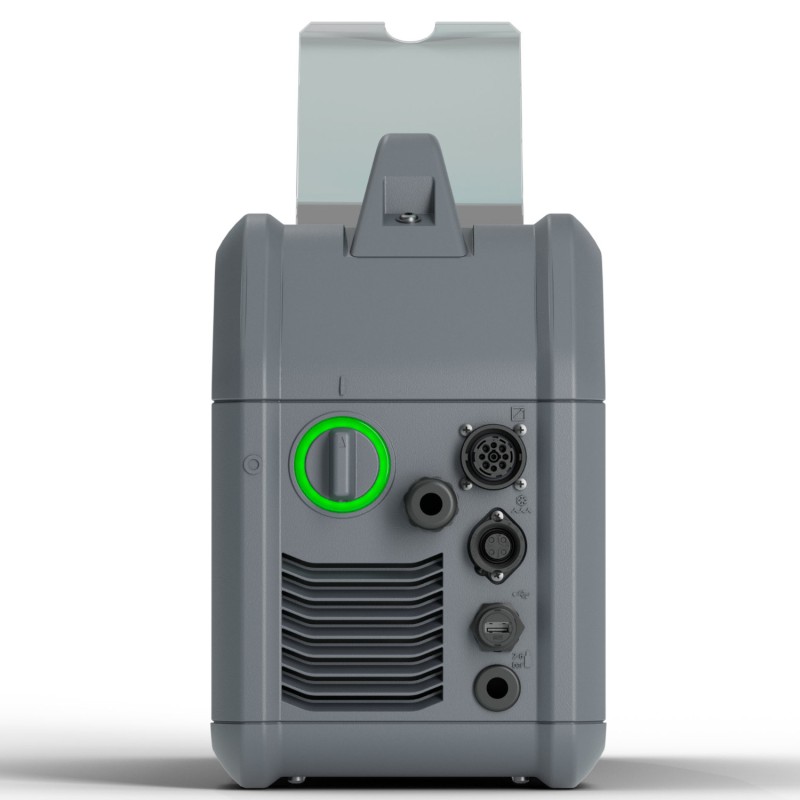

Plug back 1 x CAN plug for water unit
1 x mains connection to water cooling unit, 5 pole 1 x USB A plug for software updates
1 x gas connection
1 x power button
Dimensions (HxWxL) 356 x 210 x 543 mm
Weight (AC/DC) 13.6 kg
Weight (DC) 13 kg
Application class S/CE
Protection class IP 23S
Operating temperature range -10 – +40 °C
Standards DS/EN IEC 60974-1
DS/EN IEC 60974-10, klasse A
DS/EN IEC 60974-3
Bullets:
• 200 amps
• DC or AC/DC
• Lightweight – only 13 kg.
• 100 % duty cycle
• Versatile
• New digital display
• All software functions you need
