Migatronic Focus TIG DC Pulsed Welder 160 Amps
Item code: 79510322
£ 765.00(Inc VAT £918.00)
Migatronic DC Pulsed TIG Welder - FOCUS 160 DC HP PFC
Earn 765 points when you buy this item.
Migatronic Focus TIG DC Pulsed Inverter Welder 160 Amps

The entry level 160 amp Migatronic TIG welding machine. This DC pulsed TIG welder is as you would expect from Migatronic a premium quality machine designed with ease of use in mind. The control knobs have been simplified to make setting your machine clearer and easier.

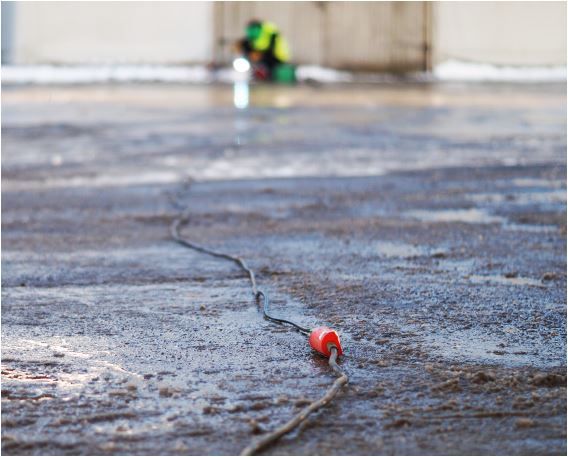

Fitted with Power Factor Correction (PFC) the Migatronic Focus DC TIG machines will all work happily from a generator or with long mains extension cables. Putting the technology simply, PFC will allow for up to 25% more power from the same supply compared to a standard machine. This can be a life saver when it comes to working on site.

Working at a hospital or around sensitive electronic equipment where HF ignition is forbidden? Not a problem - your Migatronic Focus can be switched between HF ignition and Lift TIG ignition.

Welding with your TIG set and using the pulse settings is quick and easy to setup plus you also have the benefit that one you have your settings dialed in you won't be able to accidentally knock them meaning all you have to worry about is the welding current and actually getting on with your work rather than faffing around with settings that you would on complex machines.

Technical Specs
Migatronic Pulsed TIG Welders 160 DC HP PFC 200 DC HP PFC 200 AC/DC PFC
Current range, A 10-160 5-200 5-200
Mains voltage +/- 15 %, V 1x230 (-40/+10%) 1x230 (-40/+10%) 1x230 (-40/+10%)
Fuse, A 16 16 16
Duty cycle, 100% at 40°C, A/V 110/14.4 150/16.0 140/15.6
Duty cycle, 60% at 40°C, A/V 130/25.2 170/16.8 170/16.8
Duty cycle, 100% at 20°C, A/V   170 160
Duty cycle, 60% at 20°C, A/V   200 190
Open circuit voltage, V 75 95 90
Protection class IP 23S IP 23S IP 23S
Standards EN/IEC60974 -1. - 3. -10. EN/IEC60974 -1. - 3. -10. EN/IEC60974 -1. - 3. -10.
Dimensions (HxWxL), mm 250x180x470 250x180x470 250x180x470
Weight, kg 10.7 13 13.5









Process:TIG

Amps:160
Phases:1

















Migatronic
NotApplicable
