Home > Welding Equipment > Gas Equipment > Gas Equipment Regulators

mini-braze lpg reg outlet pressure gauge

Mini-Braze LPG reg Outlet Pressure Gauge

ITEM CODE: PA2893+PA3170

£26.60

(Incl VAT VAT£31.92)

Mini-Braze LPG reg Outlet Pressure Gauge & 90 Degree Connection (G1/4LH)

Order now for Monday delivery.

Order now for delivery 28th August.

Earn 27 points when you buy this item.

Notify me when this item is back in stock!

Mini-Braze LPG reg Outlet Pressure Gauge & 90 Degree Connection (G1/4LH)
Pressure gauge and 90 degree adapter only.

This is an add on outlet pressure gauge which has been designed to fit our LPG regulator. The simple American design canister regulator is not normally supplied with an outlet or working pressure gauge.
Without the gauge the pressure is set by "feel" and experience, when you are just able to feel and hear the gas exiting the nozzle against the soft skin of your face / back of your hand there is generally sufficient gas flow - No iginition sources present of course!

Due to requests from customers we have added a two part accessory which consists of a 90 degree G1/4 left hand threaded adaptor as well as a pressure gauge with G1/4 left hand connections.

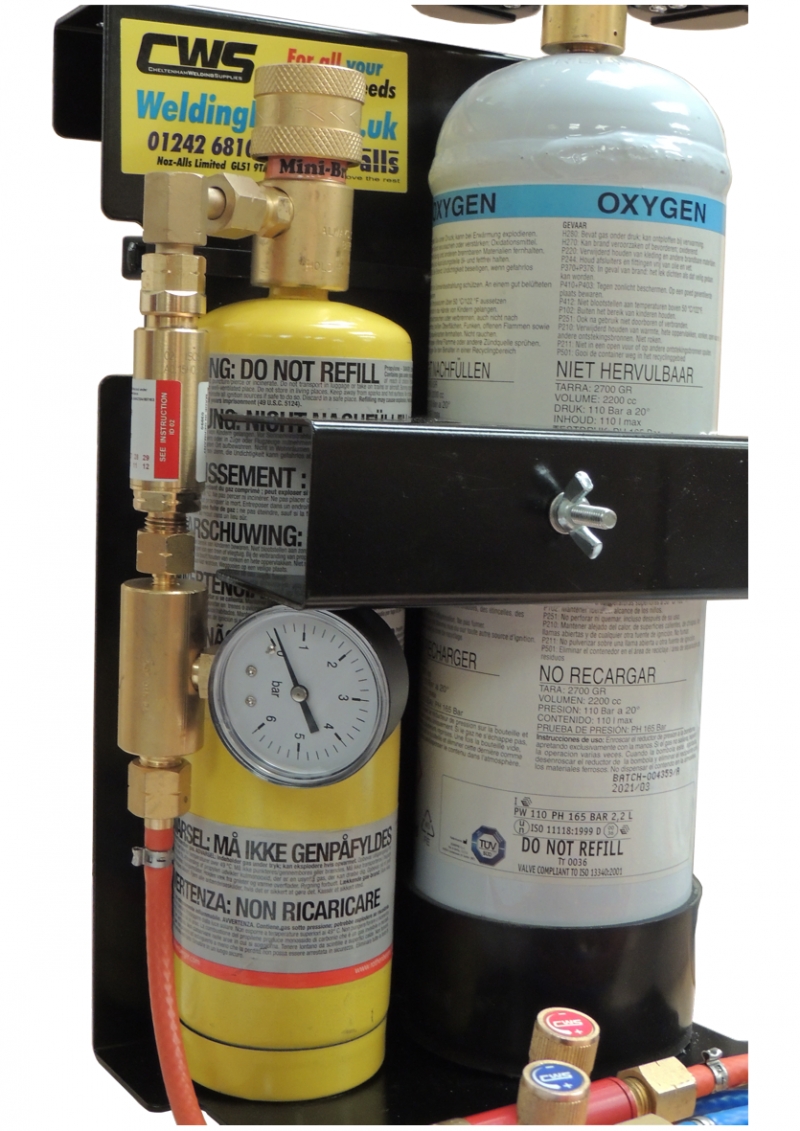

You may see from the photo that the gauge fits just below the canister clamp which keeps the gauge out of the way.

To fit the gauge to the regulator simply remove the FBA from the outlet (AF14mm & AF17mm spanners).
screw the 90 degree adaptor to the regulator outlet - again use the 14 & 17mm AF spanners.
Next fit the fuel gas FBA to the outlet of the 90 degree adaptor
Now connect the pressure gauge to the outlet of the flashback arrestor.
Finally connect the hose to the gauge outlet connection.

** This listing does not include the regulator
