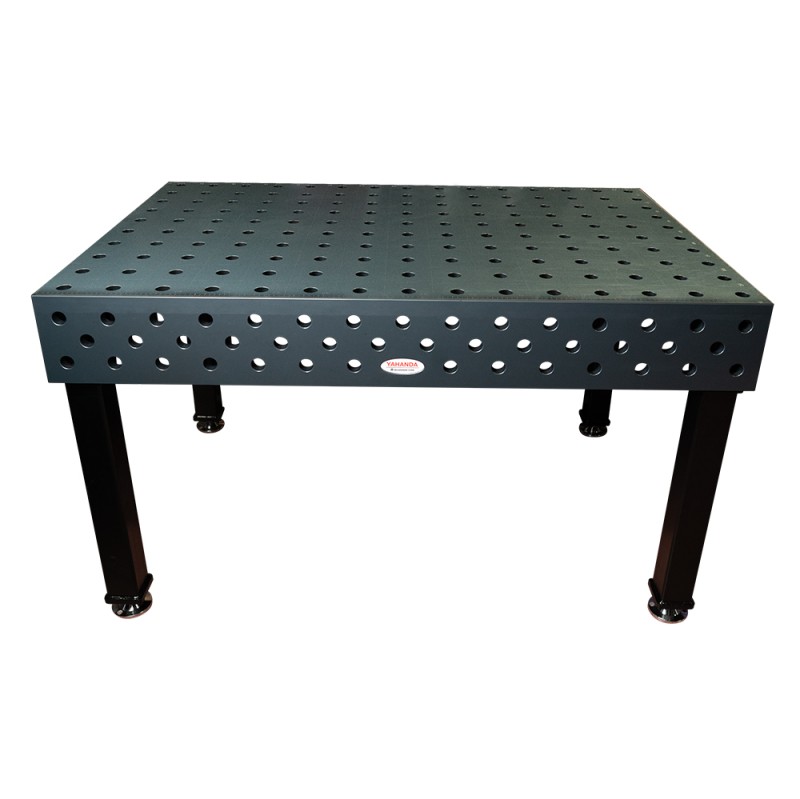

Professional Welding Table - 2m x 1m
Yahanda Wilkinson Star Modular Welding Table - 25mm Thick
Item: YHD28S2010N

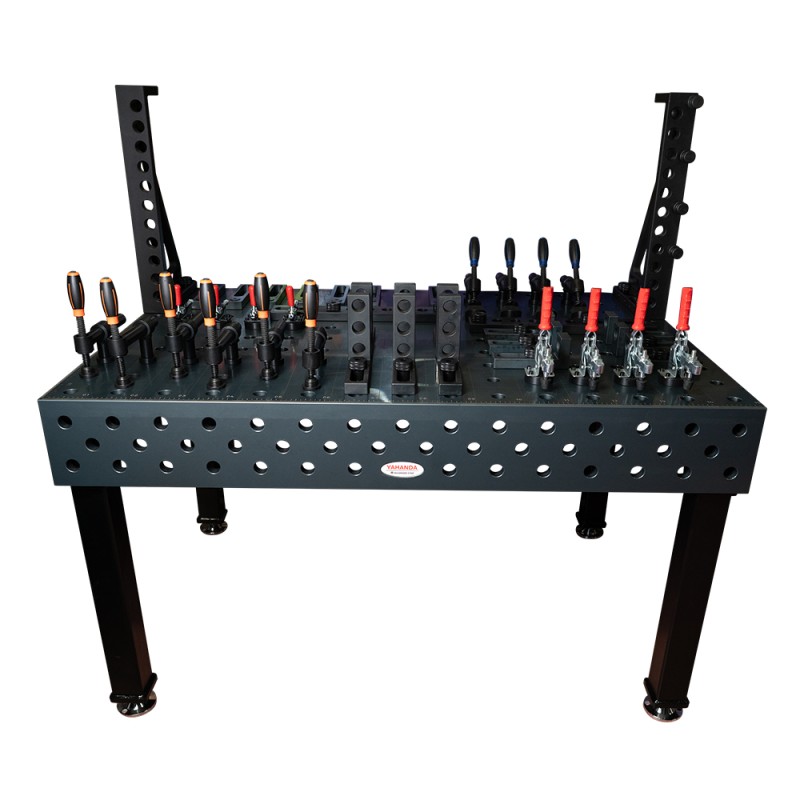

Supplied without accessories but accessories are available from the related items section below.

A highly accurate fabrication table perfect for producing work to a high standard and when coupled with the various accessories you will be able to reduce production times on repetitive jobs.

All Yahanda welding tables are made with a wear resistant, corrosion resistant and impact resistant work top. Spatter adhesion is low and rust protection is high with thanks to key parts being hard chrome plated. The 28mm diameter holes allow for accessories from other table brands to be used. If you require a larger table, these tables are designed to be coupled together to create larger work areas should you required.

Table Spec
Table Material: Tool steel / 2311 (Annealing)
Flatness: ≤0.10mm - Table surface tolerance
Perpendicularity: ≤0.1mm/m - Tolerance of top surface and side surface
Parallelism: ≤0.10mm/m - Parallelism tolerance between table top and bottom surface
Hole pitch: 100±0.02mm - Tolerance between any two holes
Grid pattern: 100x100mm - Lines distributed between holes
Hole diameter: 28mm +0.14,+0.17
Surface roughness: ≥Ra1.6 ≤Ra3.2
Table thickness: 25±1mm
Thickness of joint plate for table and support legs: 25mm
Four edges chamfer: R3/R5
Hole chamfer: Top C2 Bottom C3
Total height: 800-850mm(Adjusting range?50mm)
Surface treatment: Nitriding
Loading capacity: ≤2500Kg It is recommended not to exceed this weight
With mm scale: Yes
Number of support legs ( leg diameter?Φ90): Normally 4 legs.
Up to 3000mm -6 legs, up to 4000mm - 10 legs
