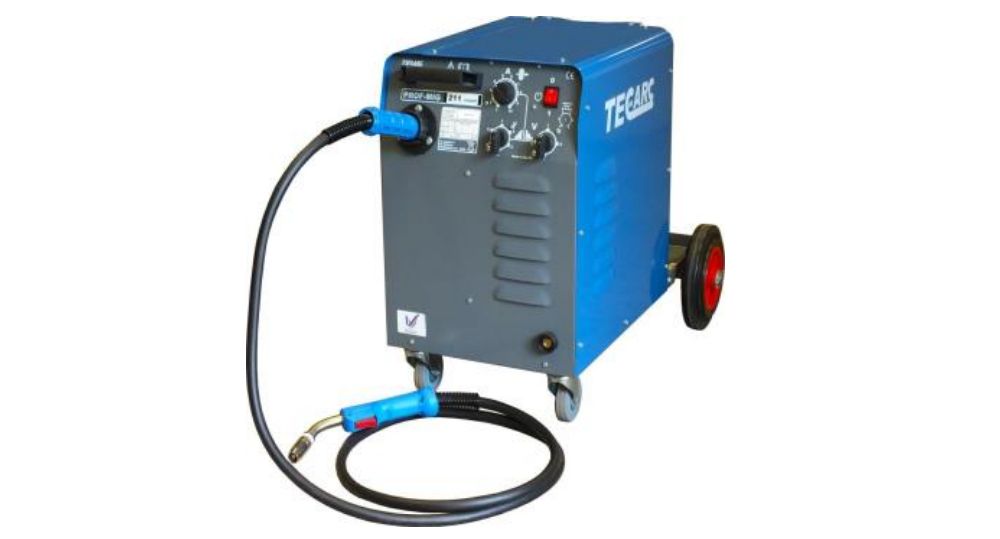

ProfMIG C211 215 amp 240V Conventional Compact MIG Welder - Tec Arc Made in the UK
Normally - In stock for immediate despatch
Top quality manufactured in England these ProfMIG welding machines have been designed for the serious DIY workshop, maintenance departments, light fabrication & automotive industry sectors as well as those looking for a compact, reliable MIG welder for lighter duty welding.
The ProfMIG C211 has been aimed at the professional artisan providing a good quality MIG which has been engineered to keep welding year upon year………..
These ProfMIG welders are a simple design which has been tried and tested for over 15 years with many 1000s being sold throughout the UK as well as Europe. When you are fed up with cheap imports you will readily appreciate these British made MIG welders are really very rugged being manufactured from very few parts makes the MIG welder exceptionally reliable, so when you want a compact industrial MIG with low maintenance costs over a long period of time then these entry level compact MIG welders will whet your appetite.
The Key Features for the 230V single phase ProfMIG C211 are:-
- 4 roll wire drive for consistent wire feeding
- Digital display for accurate setting and repeat setting to achieve consistent results
- Welding power setting from 20 Amps to 215 Amps in 12 steps. The low amps being ideal for very thin material. Steps equal 20A, 38A, 55A, 73, 91, 109, 126, 144, 162, 180, 197 & 215A
- Smooth welding characteristics right through the range from 20A to 215Amps utilising bult-in electronic burn back optimised for every power setting
- Industry standard “Euro” torch connection and supplied with the CWS MB15 3m style of MIG torch, there is the option of adding a 4m MB15 or the CWS MB25 3m / 4m MIG torch depending on your needs. Longer torches are also available.
- The transformer is 100% copper wound for longevity, no cheap / low duty aluminium windings used in this MIG welder. Having all copper coils allows for a 5 year guarantee.
- High efficiency of over 90% so designed to minimise power consumption and reduce operating costs
- Good quality European wire drive motors optimised for 0,6 – 0,8 & 1,0mm filler wires supplied on standard 5kg or 15kg wire spools.
- Good quality cooling fans help provide a higher duty cycle than most similar sized MIG welders
- The robust design and chassis manufacture for these ProfMIG welders means they cope really well with full size industrial shielding gas cylinders
- Not thought about or seen by most users the main selector switches used in these MIG welders use a metal shaft for extended life – no cheap plastic shafts to break like many competitors MIG welders. TecArc ProfMIG C211 Built to do the job you need it to for as long as you need.
- Full back-up being UK manufactured so full range of spares should you ever damage your MIG welder.
Technical Spec
Input Voltage - 230
Phases - Single
Fuse Rating - 20A slow blow / machine rated breaker
Open Circuit Voltage - 18.8-48.6
Duty Cycle at 40 Degrees C - 155A @ 35%
Duty Cycle at 40 Degrees C - 120A @ 60%
Duty Cycle at 40 Degrees C - 95A @ 100%
Power Steps - 12 = 20A, 38, 55, 73, 91, 109, 126, 144, 162, 180, 197 & 215Amps
Wire Sizes - 0.6mm, 0.8mm, 1.0mm
Power Source
Weight - 55kg
Main Dimensions - 740 x 360 x 530 (L x W x H)
Width doesn't include rear wheels and height doesn't include the handle
All models comply with BS EN60974-1, BS EN50199, WEE/HD0071UZ
These MIG welders are generally built to order to allow for all the various options available to meet your exact requirements - call to see what we have in stock.
Tel 01242 681052
