Unequal Coupler G1/4 RH Male thread x G3/8 RH Loose nut .
Unequal Coupler G1/4 RH Male thread x G3/8 RH Loose nut .
ITEM CODE: PA1904
£10.26
(Incl VAT VAT£12.31)
Special Threaded Coupler G3/8 RH female nut x G1/4 RH male thread
Order now for Friday delivery.
Order now for delivery 28th August.
Earn 10 points when you buy this item.
Notify me when this item is back in stock!

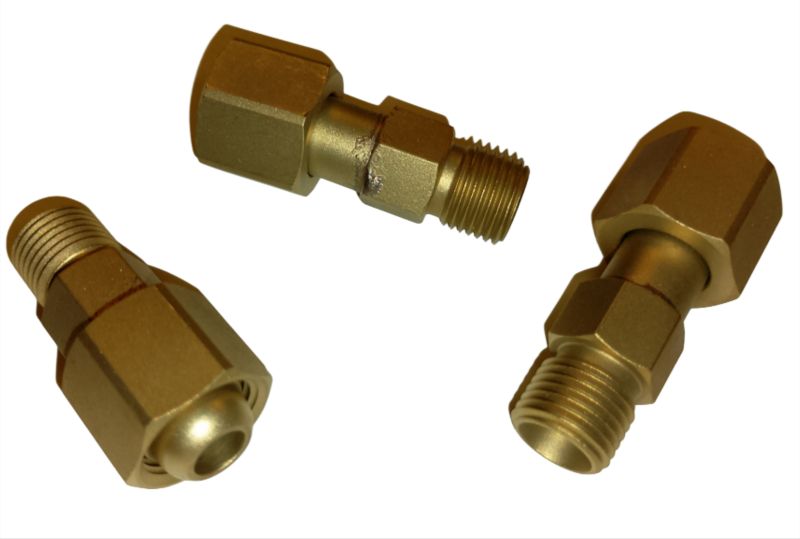

Unequal Connection Adaptor G1/4 RH Male x G3/8 RH Loose Nut

This is single piece connection adaptor which has been silver soldered together.
The loose G3/8 RH female threaded nut has the normal nipple head so the adaptor will seal correctly with the respective cone - metal to metal seal.
At the other end is a G1/4 RH male thread with the standard concave sealing cone which allows for the 1/4 headed nipples to seal correctly.

These a good quality fittings with long threads and a full width hexagon enabling a wide spanner to be used easily - AF 14mm body hexagon, the loose G3/8 nut has the required 19mm AF hexagon.

Overall length of these couplers is 47mm with a good 7mm bore through to minimise any restrictions to flow.

Overall Length = 47 mm
Body across flats = 14 mm
Nut across flats = 19mm
Bore through =  7 mm
G1/4 RH thread length = 10 mm
G3/8 RH nut thread length = 12mm

Noz-Alls have many different sizes and types of connector with all the normal thread sizes plus some more unusual threads as well, if you don't see what you require please telephone Noz-Alls on 01242 681052 or drop us an e-mail
