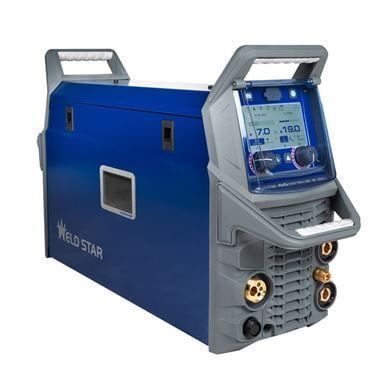

Weldstar Infinium 4-in-1 Welding Machine - 200Amp
Dual voltage (110 or 230V) PFC
Part Number: WS-MU4-1
In a world where every machine manufacturer seems to want to increase the number of processes one machine can do and then they boast about it being a 6 in 1 the Weldstar Infinium multi process welder puts right the
"over exaggerated advertising" wrongs many machines claim to weld, with the Infinium being a true 4 in 1 welding process machine.
The new Infinium machine will do the following:-
- Standard MIG / MAG
- Pulsed MIG / MAG
- Synergic MIG / MAG
- DC TIG
- DC TIG with Pulse
- AC TIG
- AC TIG wit Pulse
- DC MMA
- AC MMA
To many others you may be tempted to call it a 12-in-1 welder but lets keep it sensible and grounded like this range is. (Yes some manufacturers have classifed MIG and MAG as different processes for their machines just to add an extra process).
It comes complete with:-
- MIG / TIG gas regulator,
- Shielding gas hose,
- MIG torch (3m),
- TIG torch (4m),
- MMA lead (3m) and a
- work return lead (3m).
Literally the only thing you have to add is a suitable plug (Noz-Alls can add this if you would like us to do it, just ask), gas and wire.

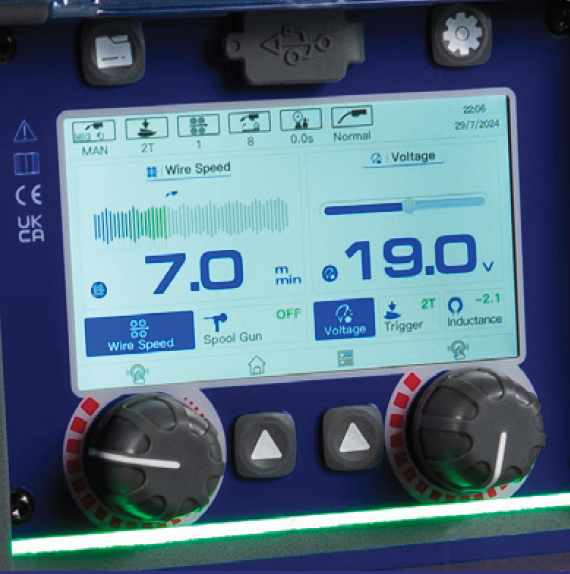

This welder is built with a user friendly 5 inch graphic display which runs on a well laid out rotating graphic to select the various different welding processes and settings available to you.
The fan is on demand so will only cut in when it is actually needed saving energy but also reducing dust intake into the machine. Software updates if they are ever required can be done easily via a USB port on the front of the machine.
For the machine spec please see the Specification tab.
| Input Voltage |
AC110V +/-15% 50/60Hz |
AC230V+/-15% 50/60Hz |
| Ieff (A) |
MIG - 17.5 |
MIG - 14 |
| |
TIG AC - 16 / DC - 16 |
TIG AC - 10 / DC - 11 |
| |
MMA AC - 18.2 / DC 19.7 |
MMA AC - 15 / DC 17 |
| Input Power (kVA) |
4.5 |
7.5 |
| Current Range (A) |
MIG 10-140 |
MIG 40-200 |
| |
MMA 5-130 |
MMA 5-200 |
| |
TIG 10-160 |
TIG 5-200 |
| No-Load Voltage (V) |
MIG 28 / MMA 75 / TIG 75 |
| Duty Cycle @ 40C |
200A @ 25% |
| Efficiency (%) |
85 |
| Idle State Power (w) |
30 |
| Power Factor |
20 |
| Protection/Insulation Class |
IP23/H |
| Wire Reel Size |
5kg / 200mm |
| Dimensions (LxWxW mm) |
660 x 210 x 330 |
| Weight (kg) |
20 |
TIG Ability is as follows:-
The TIG setting has 3 modes:-
- Smart TIG – select material, joint and material thickness (1mm to 8mm)
- HF TIG &
- Lift TIG
TIG welding parameter settings:-
- Pre & post gas set between 0- to 20 seconds
- Slope up & slope down between 0 – 20 seconds
- Peak amps and trough amps between 10 and 200A
- Pulse frequency from 1/2Hz to 999 Hz
- AC frequency from 50 to 250 Hz
- AC balance from -ve 5 to +ve 5
Many different wave forms:-
- Square wave
- Triangular wave
- Sine wave
-
- Square – Sine wave
- Square – triangular wave
- Sine – square wave
- Sine – triangular wave
- Triangular – square
- Triangular – sine
Trigger latching 2T, 4T, RPT, Spot
Smart fan control
Wireless foot control ready.
