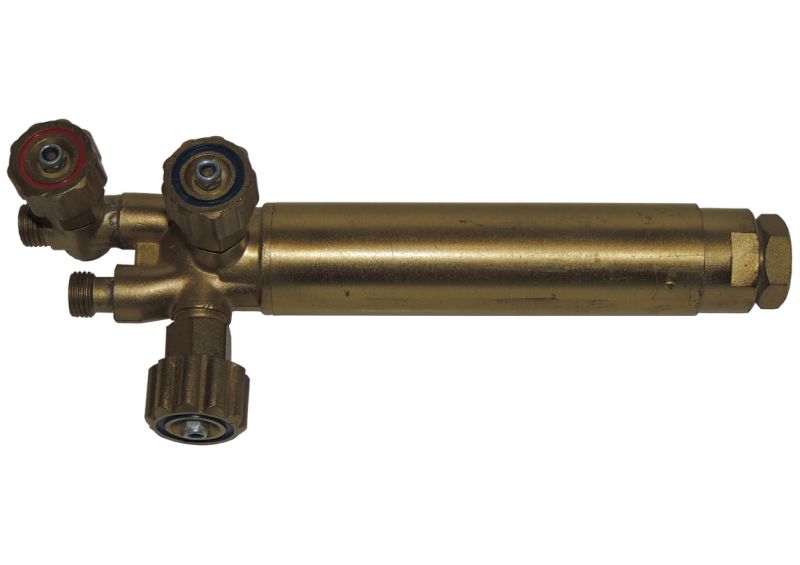

Wizard Nozzle Mix Machine Cutting Blowpipe 2x G1/4 Inlet Connections -
To Suit The Wizard Straight Line Tractor
This is a standard replacement machine cutting blowpipe for the Wizard cutting tractor which is typically used on a simple track for straight line cutting.
The machine cutting torch barrel diameter is 32 mm with a barrel length of 145mm. Brass valve block plus a brass head stock coupled with gas supply tubes which are covered by the brass tube or torch "barrel".
Should a replacement torch rack be required these are available to fit to the torch barrel. Item number PA5104 - Rack has 12 TPI - Rack depth and width designed for the Wizard blowpipe and knuckle only and will not be suitable for other types of torch.
The machine cutting torch has the standard three seat nozzle mixing seat configuration which suits ANM / PNM /ANME / PNME and AGNM or PGNM when used for "J" edge plate preparation.
Inlet connections are G1/4 right hand and left hand for the fuel gas connection, the oxygen connection is split between the pre-heat and cutting oxygen. The cutting oxygen valve has a quick action turn to allow the full flow of cutting oxygen to be achieved within half a turn. Being a
