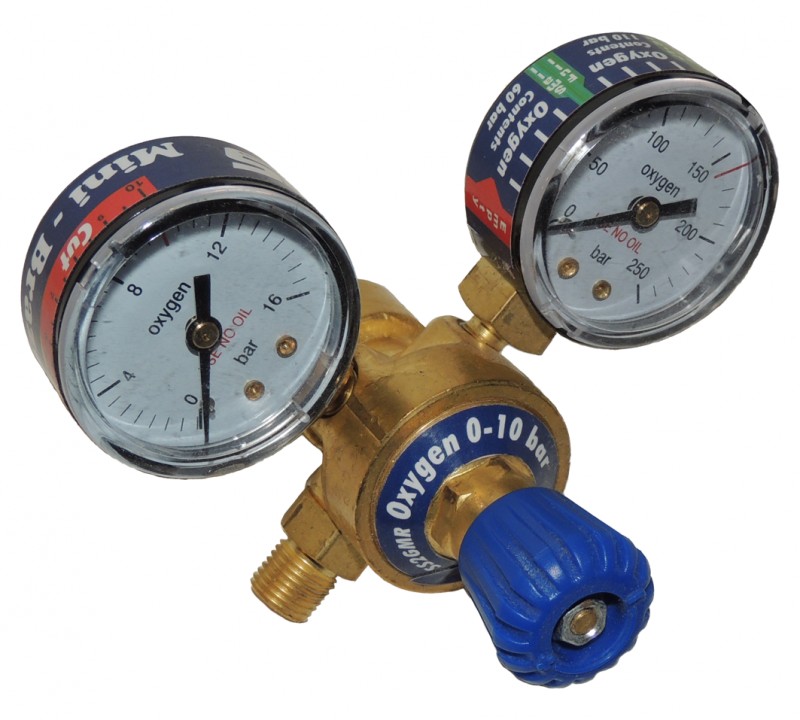

2 Gauge Mini Oxygen Regulator 0-10 bar for OxyTurbo Disposable Canister with right hand M12 thread
The Latest Oxygen Reg for OxyTurbo Disposable Oxygen Bottles - M12 Right Hand Thread
An improved replacement oxygen regulator suitable for use with the OXYTurbo micro oxy / fuel gas sets.
This regulator will only fit the OXYTurbo brand oxygen canister with the M12 right hand connection. As with our standard regulator, which has the readily available M10 RH thread, this M12 connection version has the same features which means it is very easy to screw the G1/4 flashback arrestor to the regualtor outlet.
Our regulator outlet pressure is variable from 0-10 bar with the very low operating pressure most nozzles being easily set on the working pressure gauge. The other gauge indicates the oxygen canister pressure / canister contents. The contents gauge indicates the typical fill levels for both the 60 bar and 110 bar canisters.
Other additional features include the built in non return valve fitted into the regulator outlet along with a particle filter.
The thread that connects to the disposable oxygen bottle is specific only to OXYTurbo being the M12 right hand thread.connection.
This oxygen regulator will not fit standard oxygen canisters nor Rothenburger Oxygen canisters as both those canisters use different connection threads to OxyTurbo.
Noz-Alls do have M12 to M10 adaptors available to suit which means you never need to be stuck without oxygen no matter which oxygen canister is available.
Important Notes - Mis information on other websites
The mis-information is most probably due to a lack of knowledge as well as believing the information promoted by the suppliers of equipment several websites just repeat information given to them. Noz-Alls always try to acertain the correct information so as to promote the facts to you.
Mis-information Note 1
Please be aware that there are no main stream industrial regulators with built in flashback arrestors - it is impracticable and too costly.
When it comes to "lower" end of the market for disposable canister regulators the cost would be really prohibative to build in a Flashback arrestor. Therefore, despite what some website are claiming there are no disposable canister regulators which have a built in flashback arrestor - they do not exist.
Do not believe what their website states.
Any Flashback arrestor would be manufactured to BS EN ISO 5175-1 (was 730-1).
Noz-Alls provide BAM approved FBA which screw to the G1/4 regulator outlet.
Mis-information Second Note
Hoses may be fitted with HCV - Hose Check Valve - which is a simple non return valve.
The HCV is NOT a flashback arrestor and the HCV does not stop a flashback.
The HCV is supposed to prevent the backfeeding of gas only.
At Noz-Alls we do have torch mounted Flashback Arestors, they are larger than the HCV and cost more than the regulator mounted FBA in some cases.
Mis-information Third Note
Also, please do not believe the mis-information concerning how hot some of the gas mixtures will burn at, for example one website quotes their yellow gas canister with oxygen provides 3150C this is just not possible - oxy / propane will provide 2810C and oxy / propylene provides 2872C. (Yellow MAP canister).
Oxy / acetylene provides 3106C which is the hottest commercially available flame temperature and is able to do this with a neutral flame i.e. not oxidising, hence why it is possible to fusion weld with oxy / acetylene.
