Fillet Weld Gauge 7 Separate Blades - Engraved with Imperial & Metric Marking Stainless Steel

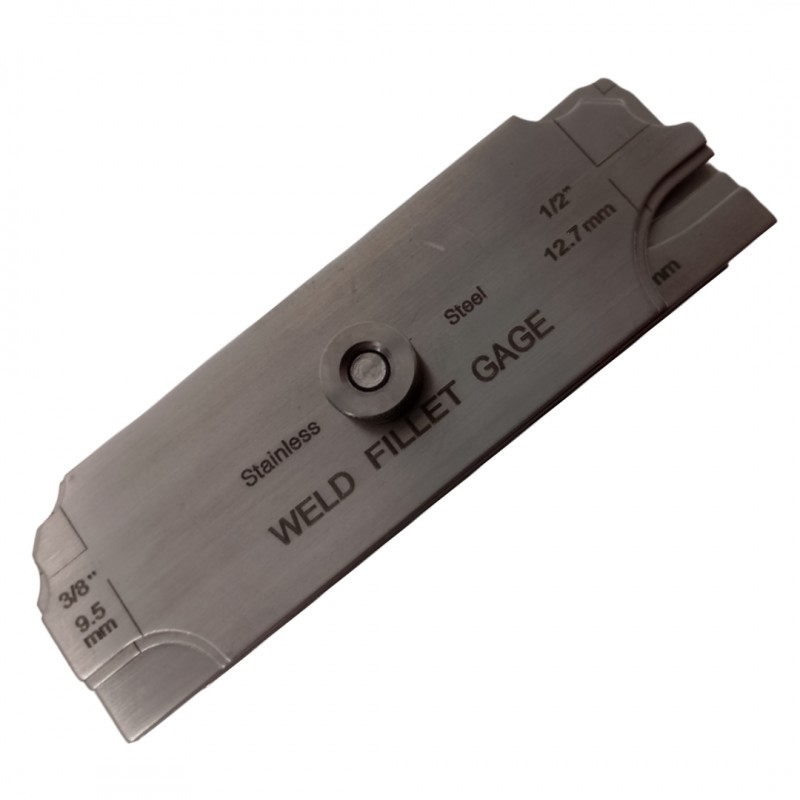

Weld fillet gauges made from 7 engraved stainless steel leaves held together with a central clamp suitable for fillets from 1/8" to 1" or 3mm to 25mm

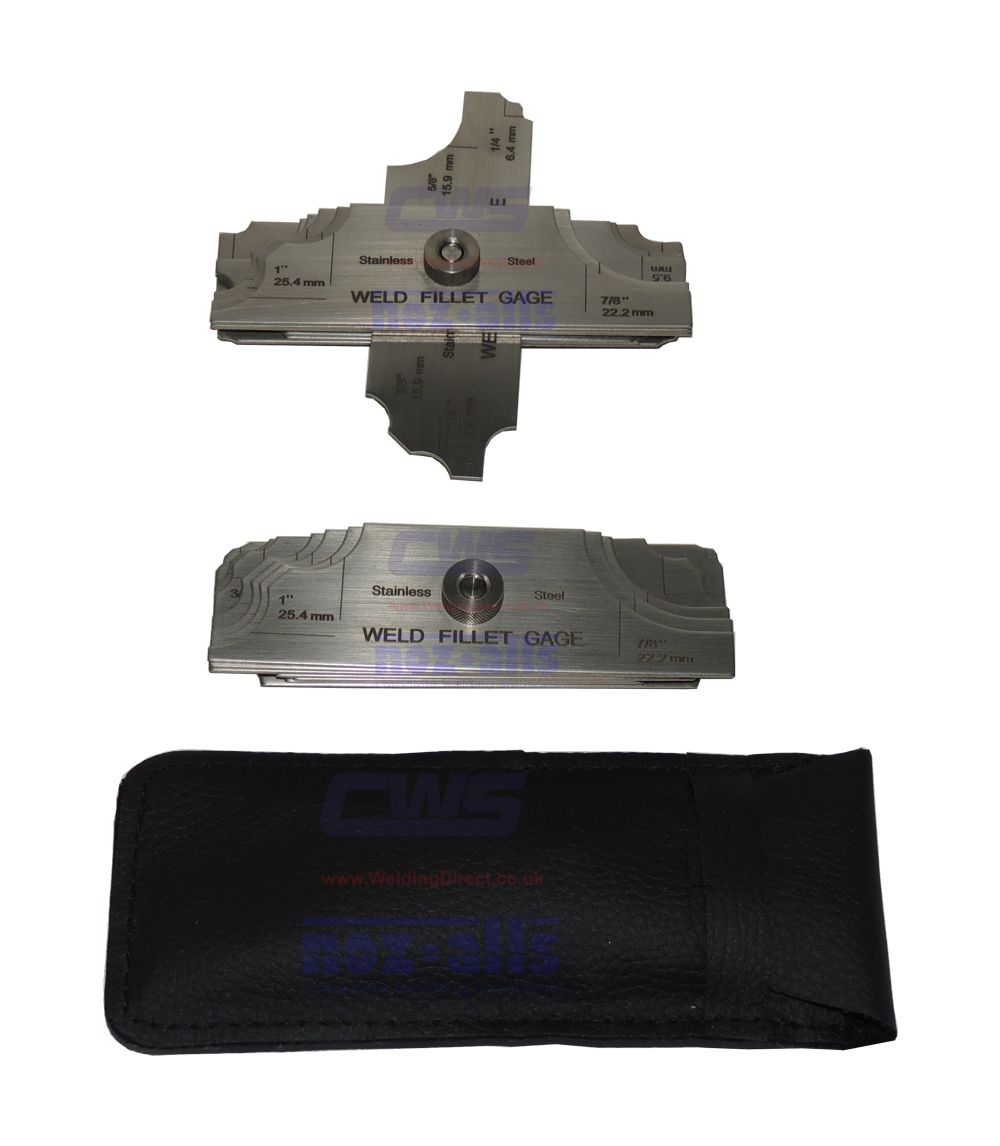

These 7 blades are manufactured from stainless steel with engraved markings in both inches and metric sizes which means these blades should last without the markings rubbing off. The blades are held together using a threaded connector, the set is supplied in a faux leather slip which allows it to be kept comforably in your pocket.

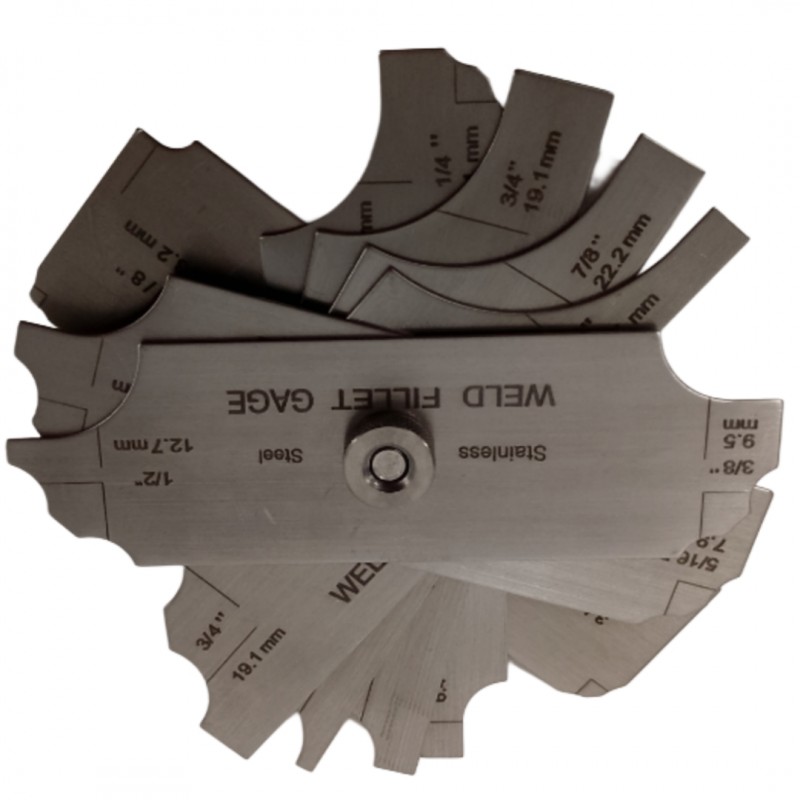

The blade provides for measuring the horizontal and vertical leg length as well as the throat depth. The first four gauge blades listed provide both the leg length & throat for each weld bead size, the remaining three gauge blades split the leg and throat gauge due to the size.
- A) Blade 1/8" & 3/16" - 3.2mm & 4.8mm
- B) Blade 3/8" & 1/2" - 9.5mm & 12.7mm
- C) Blade 5/16" & 7/16" - 7.9mm & 11.1mm
- D) Blade 1/4" & 5/8" - 6.4mm & 15.9mm
-
- E) Blade 7/8" - 22.2mm throat & 3/4" - 19.1mm Leg length
- F) Blade 3/4" - 19.1 mm Throat & 1" - 25.4mm leg length
- G) Blade 1" - 25.4mm throat & 7/8" - 22.2 mm leg length
