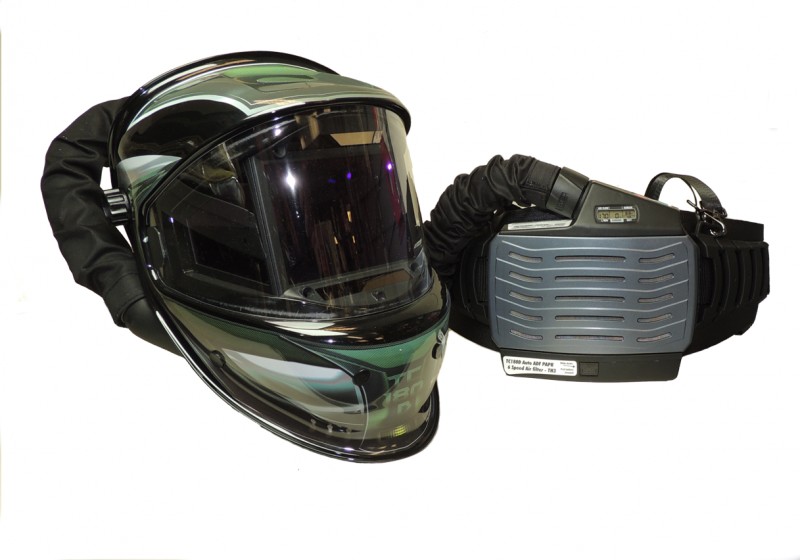

PAPR Air Fed ADF Welding Mask Package - TH3 - TC180D

A proper game changer in the PAPR market. Light state of shade 3 and no manual setup required. Clear enough to grind with without flipping a lens up.
Main front lens viewing area of 115x85 plus two auto darking side lenses give you an unrivaled wrap around view. Couple that with your truly affordable consumables and you won't want to use anything else.  Light, comforable and strong, designed to be worn all day.

Possibly the best PAPR system on the market.  TH3 Approved.

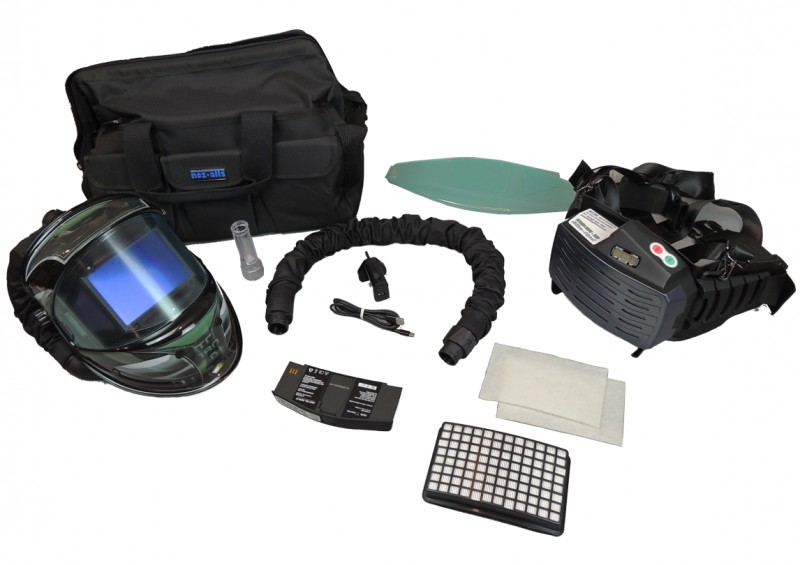

What is included;

• 1 pc - TC180D Mask Prepared for Air - two feed pipes (not one).
• 1 pc - 6 Speed AirWave Blower Unit
• 1 pc - Wide support belt
• 1 pc- Shoulder Harness
• 1 pc - Air Hose with Cover
• 1 pc - UK 13A Charger (USB C)
• 1 pc - Long Life Battery (19 hrs @170L/min)
• 1 pc - Spare Main HEPA Filter TH3P R SL
• 2 pcs - Spare Pre-Filter
• 1 pc - Flow Tester
• 2 pcs - Outer Mask Protective Lens
• 1 set - Inner Mask Protective Lenses
• 1 pc - Good Quality Strong Holdall with Shoulder Strap

The Mask - TC180D Prepared for Air
Pop it on and start welding. Aside from the usual manual welding mode, this mask will automatically select the shade level required for the intensity of the arc and can also reduce eye strain with the fade to light function rather than flashing between the dark and the light state. Ultra safe 180 degree wide view through the side ADF lenses..

• Colour Profile: True Colour
• Lens Quality: 1/1/1/1
• Front  ADF Lens Size: 115x85mm
• ADF Side Lens Size: 68x35mm increasing to 68x80mm on both sides
• Shade Level Adjustment: DIN #4 - DIN #14
• Shade Level Increments: 0.1 of a shade
• Shade Level Setting: Fully Automatic or Manual
• Fade to Light: Yes (Eye strain reduction)
• Independent Arc Sensors: 5
• Minimum Amps in TIG: 2 Amps
• Runs on 2 pcs of CR2032 batteries (plus 2 solar cells)
• 2 Year Warranty

The PAPR Blower Unit - AirWave TH3 (APF40)
A top spec unit which achieves TH3 APF40 (highest possible in the UK). Unrivaled quality and functionality with 6 speed settings from 170 lpm through to 220 lpm. Our standard long life battery gives you 19 hours run time. 5 hour charge time.
Comfortable and supportive belt and harness mean long term use is no problem.

Flow rates vs battery life:-

• 170 lpm - 19 hours
• 180 lpm - 16 hours
• 190 lpm - 13 hours
• 200 lpm - 12 hours
• 210 lpm - 11 hours
• 220 lpm - 10 hours

The easy to read LCD display shows:-

• The percentage of clogging on the filter,
• Battery life remaining in hours,
• Battery charge percentage
• Current set flow rate.
• Warning symbol when activated.

Should the filter become clogged the blower automatically ramps up to give you a constant flow rate and when the filter is clogged too much then the blower unit will sound an alarm as well as vibrate to alert the user, plus the warning symbol will be present on the display.

Maximum Comfort In Use - Designed to be Worn All Day
Our PAPR mask is different to most as it has two air feed pipes with the air flow into the mask being at mouth level ensures you will not suffer with a cold forehead nor dry eyes, which is common problem on many entry level masks and even some premium brands with a single top feed pipe.  The symmetry of the hose design on our mask keeps the mask evenly positioned on your head whereas a one tube design can cause unbalance on the mask.  (It costs much more to test the mask as the tests have to be carried out on each air feed pipe - which is why most masks opt for one feed pipe).
The excellent air feed system coupled with the support that the belt provides, which includes a shoulder hardness to ensure any strain is distributed away from your waist and uses some of the strongest muscles in your body, those in your torso, mean this PAPR system really can be worn comfortably all day.

The complete kit in the holdall weighs just under 5kg individual items:-

• A   TC180Digital PAPR mask complete with feed pipes & seals = 1016g
• B   Blower unit with belt, comfort band and harness = 1252g
• C   Inter-connecting feed pipe with protective cover = 246g

Consumable spare parts :-

• Main filter                        1 piece = 88g
• Pre-filter pack               10 pieces = 26g
• Spark protection filter     1 piece = 11g
• Battery Li Ion 19 hour    1 piece = 286g

As well as the consumable items, a full range of spare parts are available should damaged be caused to your PAPR system.

Type number AD801 PRO
PAPR 01

Please note that the photos are being updated from our Market research samples which had the plain gloss black shell to the current model with the dark green and black subtle design shell.

Daily and weekly maintenance log sheet
