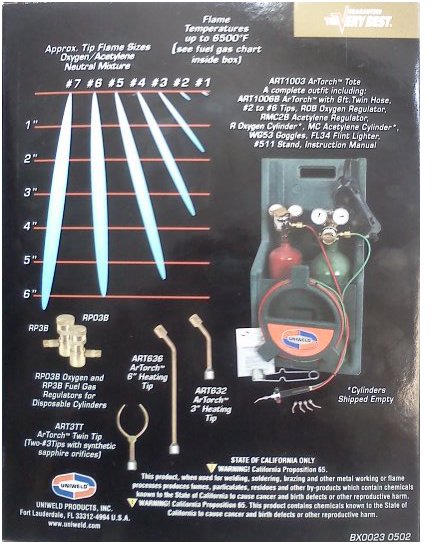

Artorch Micro Welding Torch - Set Torch, Hoses & Nozzles #2, #3, #4, #5 & #6
Fitted with 3/8" BSP Nuts on Red and Green Hoses
Similar to the Smith Little torch the Artorch set includes the shank fitted with 1,8m hoses plus 5 micro welding nozzles. The micro welding nozzles size #2 & #3 utilise an industrial sapphire through which the welding orifice is generated, this is to ensure consistency and accuracy.
Using Oxy / acetylene gases enable the highest flame temperature of 3106 degrees Celsius to be achieved with the smallest of welding cones. The micro flame welding nozzles are designed to undertake such operations as to heat and join very small parts like jewellery, dental wires, electronic circuits and components plus every micro operation you can think of.
Hoses are fitted with 3/8 BSP nuts for connection to the flashback arrestors fitted to the outlet of the gas supply regulators.
This set is supplied with curved nozzle sizes #2, #3, #4, #5 and #6 the outlet for the smallest nozzles sizes are machined through an industrial ruby to ensure absolute accuracy and consistency. (#1, #2 & #3). Nozzle sizes #4, #5, #6 and #7 are manufactured from swaged copper tube.
These are genuine American sets which we have purchased from America and are not cheap copies, so you may be confident when purchasing these from Noz-Alls that you will obtain a top quality set.
Note: These sets are American and have been fitted with red hose for Fuel and green hose for Oxygen.
We stock replacement red & green hose sets should they be required.
Longer hoses or blue and orange hoses can be supplied at extra cost, please see our related products below.
Nozzle sizes conversion from US to UK equate as the following;
| USA Size |
UK Size |
| #1 |
#1/20th |
| #2 |
#1/14th |
| #3 |
#1/6th |
| #4 |
#1 |
| #5 |
#2 |
UK size is based on Cubic feet of acetylene burnt per hour therefore #1 = 1 CFH of DA
and a #5 = 5 CFH of DA / hour (DA = Dissolved Acetylene)
Additional Information.
Nozzle tube diameter = 3,18mm (1/8”)
Length from connection nut to nozzle tip = 30.5mm
OAL nozzle length disconnected = 40.5mm
Nozzle tip dia. = 1.7mm
Shank handle dia. = 16.35mm
Shank handle tube length = 82mm (hose inlet to valve block)
Shank overall length to nozzle connection = 118mm
Shank control valve diameter = 12.3mm
