Gala Gar Compact Stainless Steel Weld Cleaner - Basic Passivation set  - 240V

Small and compact 12V working voltage TIG weld cleaner ideal for removing stainless steel heat discolouration after welding.
This is a very small and compact unit which plugs into a normal 13 amp three pin socket, designed for those that need to carry out this work occasionally during the week rather than a production machine being used everyday for sveral hours.  At Noz-Alls we do have a range of industrial units designed for continous operation when this is required - please call Noz-Alls on 01242 681052 for details.

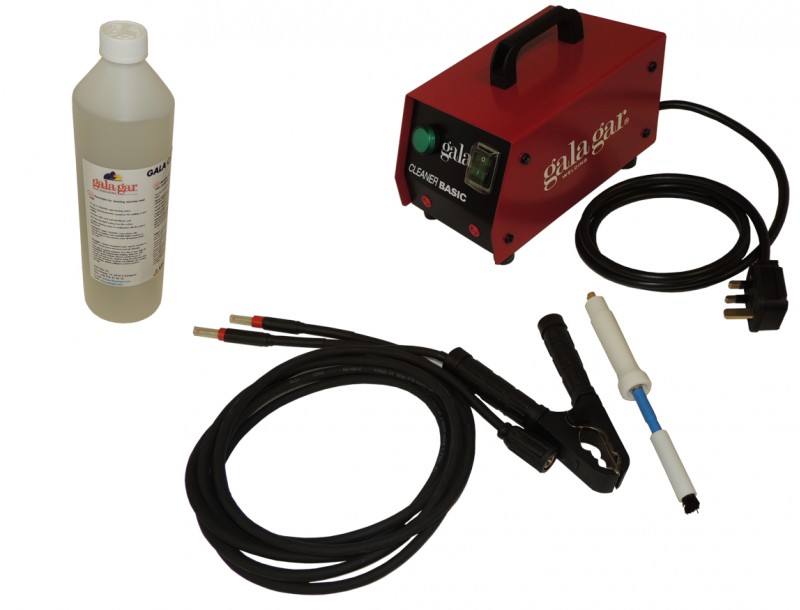

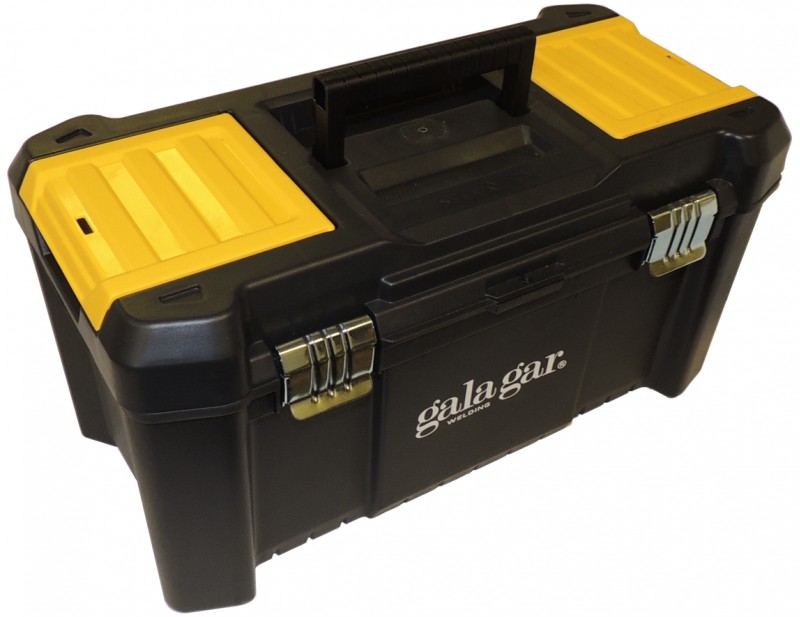

This GalaGar complete set will get you started with being able to clean up your TIG weld beads and remove the joint discolouration.  The set is supplied in a plastic tool box which includes a 1L bottle of electrolyte for the passivation of the weld bead, when the 12 volt circuit is applied / completed through the conductive treatment brush.

The passivation brush has adjustable carbon fibre filiment length so as to suit the weld area you wish to treat.  The brush handle has a small dinse plug to connect to the 2m long power lead, the work return lead is also 2m long with the end being fitted with a large crocodile spring loaded clamp which is able to open to 35mm.
Each of the operating cables has a 4mm "bannana" plug which has a spring loaded protective sleeve for plugging into the front of the power source.

Warning
The electrolyte is a phosphoric acid which is able to cause damage to metals as well as severe burns to skin and damage to eyes - attention must be paid to using the correct PPE and care exercised with the electrolyte fluid.
