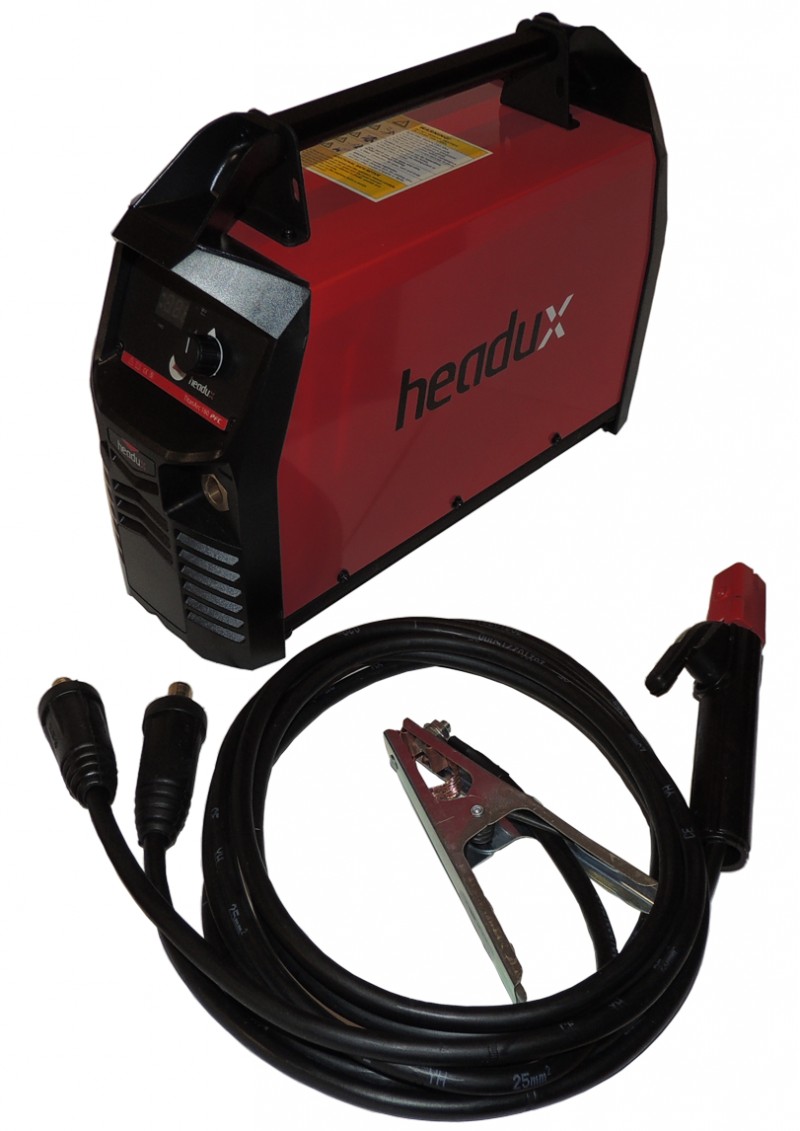

Headux TitanArc 160PFC Dual Voltage MMA / Stick Welding Inverter.
** 5 Year Warranty **
Top quality plus excellent value for money, this very compact stick wedling inverter from Headux is very easy to use and a joy to weld with as it incorporates both "hot start" and "arc force" circuits which aid your welding. The built-in hot start feature provides a boost of power for when you strike the arc to make ignition more certain time after time. The built-in arc force feature helps to maintain your welding bead run whilst welding should the welder sense that the welding rod is too close to the workpiece and about to "stick" to the plate the welder will provide a short uplift in power to prevent the rod from sticking and then when the arc lengthens and move back to a normal arc length the power will drop back to your normal welding current.

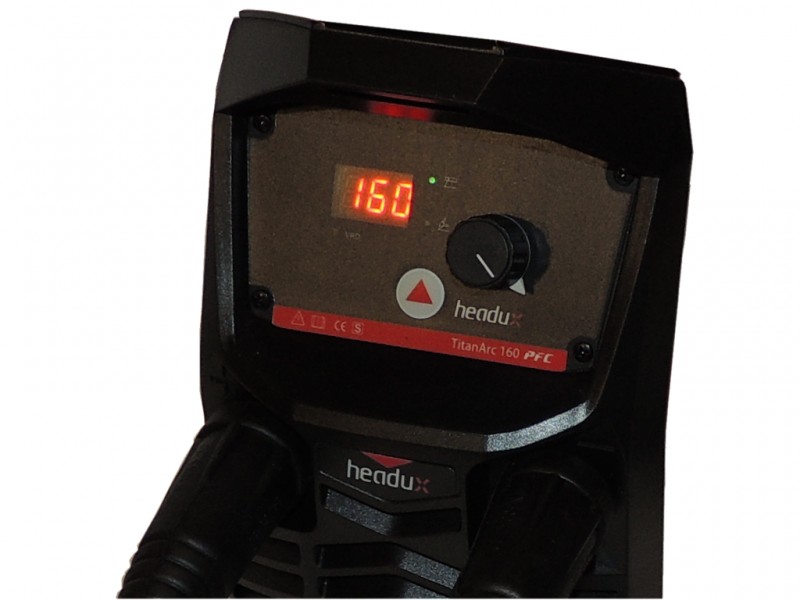

Being a digital inverter it is possible to set the welding current at every amp setting from 10 through to 160 amps with the set current being displayed on the digital meter.
Power Factor Correction - PFC - enables this welder to make the most of the power available plus makes the welder capable of operating on a longer extension lead.
The wide operating voltage range from 95 to 275 volts means the welder will be able to work onsite from 110V transformers - maximum welding output is lower compared to when welding with 240V input.
MMA stick welding inverter with power factor correction - PFC - allowing welding from input of 95 to 275 Voltage supplies with welding current from 10 to 160A
Duty Cycle - 40% @ 160a
60% @ 130a
100% @ 101a
110v - 10-110a Output
Duty Cycle - 30% @ 110a
