Kemper Set of Five Micro Flame Needle Nozzles with Adaptor
This micro set of nozzles fit to the Kemper shank, the standard shank neck is removed from the shank, the neck retaining nut is removed as that is use dto fit the adaptor for the micro-flame nozzles.
The adaptor is fitted to the shank outlet connection and the retaining nut fitted, nip tight.
The micro flame tube nozzles simply slide onto the adaptor and use a locking taper to fit to the adaptor.

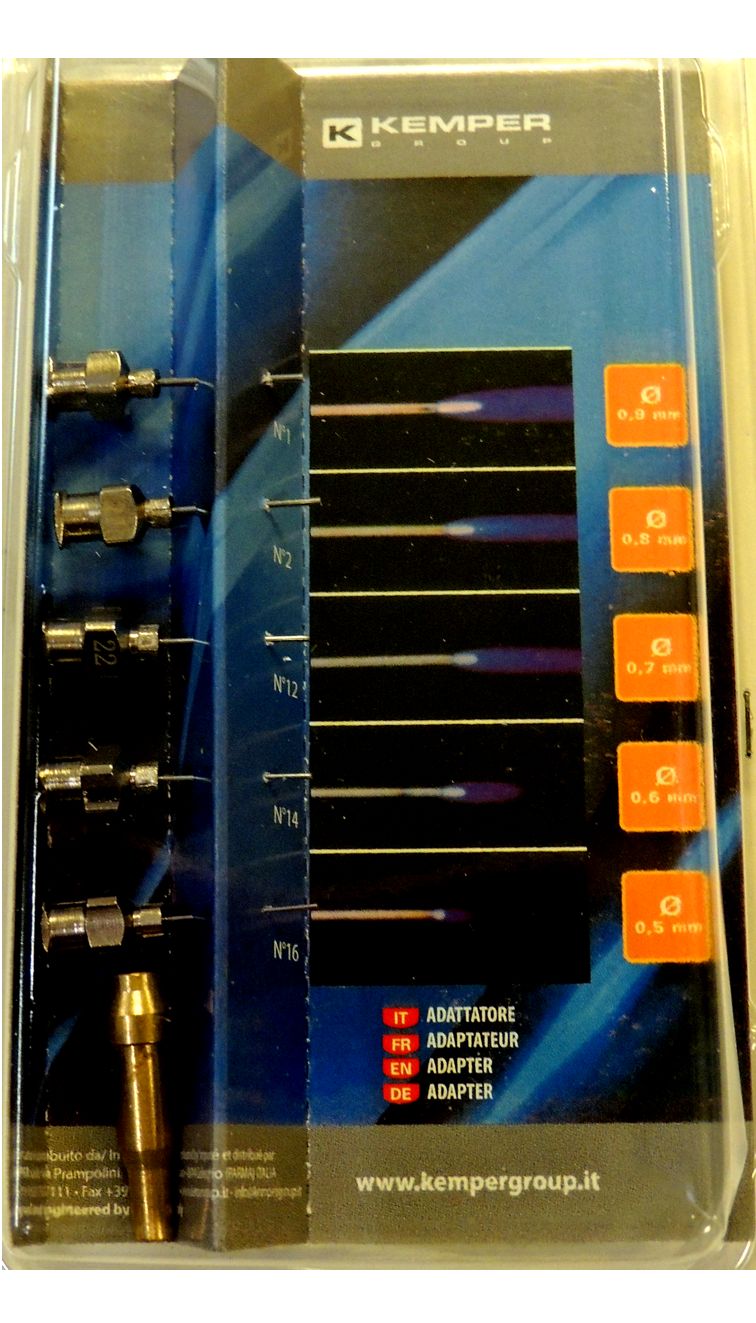

The Kemper 597 nozzle set includes the following nozzle outlet sizes:-
- 0,9mm #1 marked 20
- 0,8mm #2 marked 21
- 0,7mm #12 marked 22
- 0,6mm #14 marked 23
- 0,5mm #16 marked 25
