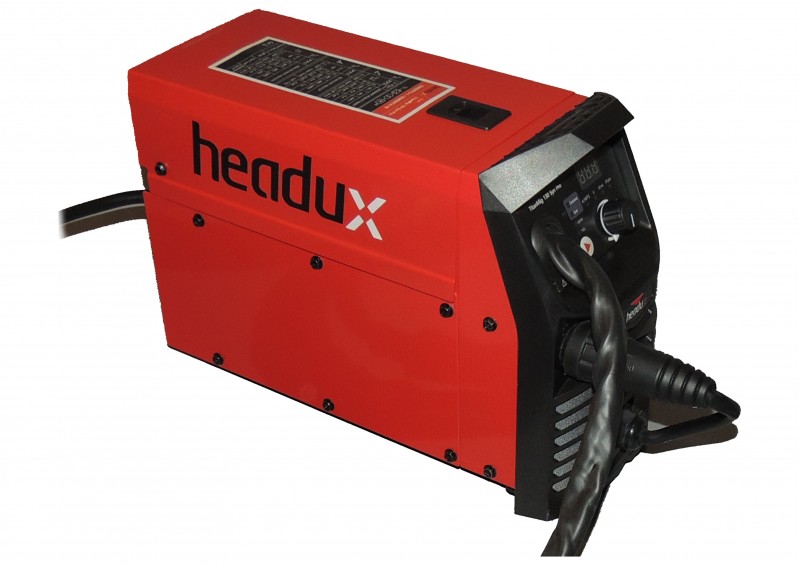

Ideal Christmas Gift - Headux MIG 130 Synergic Pro Ultra Compact Inverter MIG 20 to 130 Amp - 230V - Gas setup

Brand New Product - Available Now
Headux 130 Syn Pro  – Low Cost DIY MIG - Weld with gas and without.
Plus this is a good MMA or stick welder.

Just because a MIG welder is small doesn’t mean it is not capable.
This Headux 130 Syn Pro is a professional MIG welder you take to places your normal MIG cannot reach.

Please don't waste your money on a Pro MIG 90 with only 4 power settings or other similar types of welder from Sealey, Machine Mart, SIP or Clarke because the Headux MIG 130 Syn Pro is so much more advanced and will provide you with easier and better welding results from the outset.

Advanced features such as "soft start" make this welder very easy to weld with and less likely to "punch" holes in thin bodywork.  To aid with wire spool loading the soft start closes after a few seconds if an arc has not been struck and normal wire speed is initiated which enables wire to be loaded quickly and easily.

As a very compact and physically small MIG welder the price of the Headux 130Syn - Pro is very advantageous which means that this could be your ideal first MIG welder and not just because it provides you with both excellent weld results plus being low in cost, this MIG welder is very easy to set and use so an excellent first MIG welder.
The welding power range of 20 to 130 Amps makes it able to weld 0,6mm through to
2,5mm thick mild steel on synergic settings to a maximum of 3,2mm (1/8") with manual adjustment.  With solid filler wire it is possible to weld with manual setting to about 4mm material thickness.  The 30% MIG Duty Cycle at full power will be more than sufficient for most users.  The duty cycle is measured at 40 degrees C.

The new Headux 130Syn - Pro has been designed to be ultra compact whilst providing excellent welding results.  The inverter design has anti-spatter circuitry similar to the larger Headux MIG welders.  This is the MIG welder you can take anywhere so long as you have got a power supply or generator with a 13 amp socket.
Being ultra compact means the welder has been designed to accept the small 100mm diameter 1kg MIG wire spools.
The Headux ultra compact MIG welder is fitted with a good quality AK14 / MB15 style MIG torch on a 2.85m lead.  Using standard MB15 consumable items makes them readily available and at normal cost, not haivng to pay for special items.  Using a fitted MIG torch ensures the overall size remains much more compact.  The front of the welder has the typical flying lead with large Dinse plug found on its larger Headux brothers in the MIG machine range which makes it very easy and quick to switch between normal solid mig filler wire to the flux cored "gasless" MIG wire when required.  The 2.4m long work return lead (commonly called the earth lead) is fitted with a large Dinse plug and good quality crocodile style clamp.

Obviously a machine of this quality would not be fitted with a "live" MIG torch.  The AK14 /  MB15 style MIG torch make use of all standard components which ensures spares parts may be sourced anywhere which keeps costs down.  The shielding gas is switched by a solenoid valve in the same way as the larger Headux MIG welders.

This Headux 130Syn Pro may be used with either shielding gas or with flux cored “gasless” MIG wire.  Switch polarity simply by swapping over the flying lead from one large Dinse socket to the other.  Both Dinse sockets would be used for MMA or stick welding, stick welding leads are made to suit your needs in terms of length and electrode holder type and size.
Due to the MIG welder's very compact size our Noz-Alls large disposable shielding gas canisters are an ideal partner for your Headux 130Syn Pro Inverter MIG welding machine.  The large disposable canisters hold 240 L of mixed gas which is generally sufficient for MIG welding for about 20 to 30 minutes.  HobbyWeld rent free shielding gases may of course be used with the appropriate regulator.
Switching to flux cored wire is simple to achieve by simply swapping over the front
flying lead connection which has a large Dinse plug - see the diagram on the front of the welder to choose the correct socket for the work return lead.

The Headux welding current may be adjusted from 20 through to 130 amps just 1 amp at a time so no big jumps in welding power which enables you to weld at the speed you choose and not be forced to weld how the welder dictates which is what most starter transformer MIG welders inflict on you as the transformers only have 4 or 6 settings instead of the Headux 130Syn Pro which enables you to  choose the exact power requirement.

This Headux MIG 130Syn Pro from Noz-Alls is a very good starter MIG welder for those on a limited budget as it cost no more than the starter transformer welders from the likes of Clarke, SIP and Sealey as well as a host of other low cost transformers the Headux 130Syn Pro costs no more yet provides a machine which is easier to weld with plus creates much better welds and keeps you in control.  Simple, easy and puts you in control of your welding.  Put a rocket in your pocket, weld with the Headux MIG 130 Synergic Pro inverter MIG welder.

Very simple to set - making use of "synergic" setting - Assuming MIG welding:-
First
A)   Select your welding process
         A 1 - MIG - Gasless / Flux cored
         A 2 - MIG with shielding gas
B)    MMA  or stick welding - Torch required - See Options

C)    TIG - lift TIG welding - Torch required - See Options

MIG welding selected - indicated by the LED illuminated next to the option
Next
Choose the filler wire size you have loaded - variations depend on welding type.
0.6 - 0.8 or 0.9mm wire diameters

Followed with
Rotate the control knob until the material thickness you will be welding is shown in the LED display.

Now you are ready to weld - the "heat" may be trimmed using the front control knob the power level setting evident on the LED display.

There are a range of wire drive rollers available for different types of wire for use with your Headux 130 MIG :-
      A)     Standard "Vee" roller with 0.6 & 0.8mm grooves - Mild and stainless steel
      B)     Larger  "Vee" roller with 0.8 & 0.9mm grooves - Mild and stainless steel
      C)     Knurled roller with 0.8 & 0.9mm grooves - Gasless wire
      D)     Standard "U" roller with 0.8 & 0.9mm grooves - Aluminium & brazing
(Roller A included as standard)

For a completely compact package we have our disposable canister gas stand, regulators and of course mixed gas and pure CO2 gas cannisters to protect your weld bead.

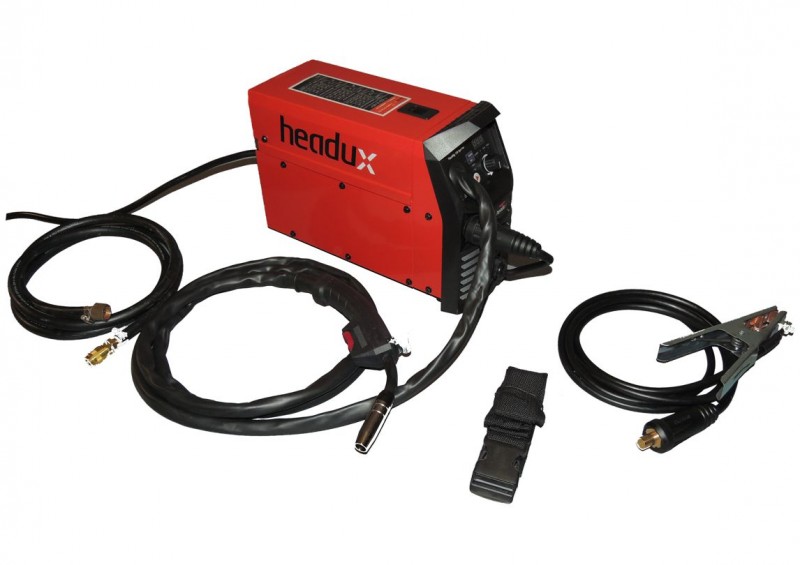

Welder size 35 x 15 x 26cm (L x W x H) Length with dinse flying lead pluged in 43cm
Gas hose - black rubber fitted with QC to machine and G3/8 nut to fit regulator outlet connection - Hose is 2m long
Work return lead - 2.4m long large dinse plug and 200 Amp crocodile clamp.
Input power lead - 2.2m long with 13amp plug
Fixed MIG torch using MB15 consumables - 2.85m long




Headux MIG 130 Syn Pro

MIG Welding Current Range -           20 – 130 A
Duty cycle at full power                     30% measured at 40C
Power steps –                                    55 steps based on 0.1 volt variation from 15 to 20.5 V
Anti-spatter circuitry                           Yes
Power Setting System                         Simple synergic control with LED read out, based on micro format MIG common wire sizes and material thicknesses set automatically. MIG weld mild steel, stainless steel and aluminium.
Manual adjustment is possible as well. Gas and gas less welding

LED display –                                     LED readout to verify welding parameters
MIG Wire feed rate –                         synergic pre-set being trim adjustable -   m / min
Soft Start                                            Yes
Wire Drive System                              2 roll insulated plastic body 2-11 m/min
Wire Drive motor                                12 watt motor
Gas & Gasless                                   Yes - Simple flying lead swap over
Wire Drive Rolls Supplied                  Vee rollers 0.6mm , 0.8mm & 0.9mm
Burn back control                               Automatic
Wire “inch” button                              No
Trigger option                                     2T

MIG torch  -                                        Standard fitted torch – non live
MIG Torch type -                                2.85m AK14 using MB15 consumables
Work Return Lead –                           2.4 m with large Dinse & crocodile clamp

MMA Stick Welding                          Yes - Optional electrode holder – Twist or crocodile
MMA Welding Current Range           10 – 110 A  Duty Cycle 30% at full power
Lift TIG Welding                               Yes - plug into Dinse Sockets with a valved WP9 or WP26
Lift TIG Welding Current Range       10 – 130 A  Duty Cycle 30% at full power

Power amplification -                          IGBT inverter  - Yes

Spool Size –                                        Mild steel 1kg 100mm Dia.

PFC Power Factor Correction             No
Power Supply Required –                   230 Volt single phase
Suitable for use with generator           Yes  Accepts + - 15% power fluctuation
Best plug to fit –                                 Standard house hold 13 amp 3 pin
Shielding Gas Supply Hose                Yes 2m fitted with quick connect & G3/8 nut

Size     L x W x H                               350 x 150 x 260mm
Weight                                                            7.5kg
